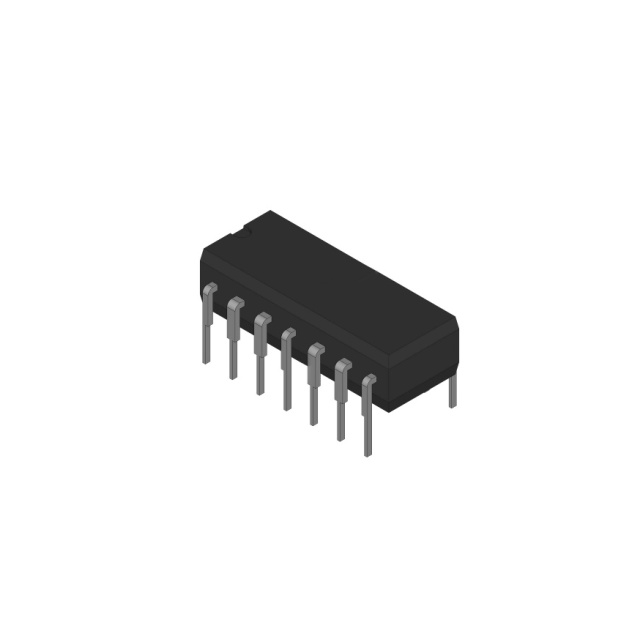

NJM2058D
Nisshinbo Micro Devices Inc
IC OPAMP GP 4 CIRCUIT 14DIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NJM2058D
Nisshinbo Micro Devices Inc
IC OPAMP GP 4 CIRCUIT 14DIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NJM2058D |
|---|---|
| Amplifier Type | General Purpose |
| Current - Input Bias | 20 nA |
| Current - Supply | 7 mA |
| Mounting Type | Through Hole |
| Number of Circuits | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 14-DIP |
| Package / Case [x] | 0.3 " |
| Package / Case [y] | 7.62 mm |
| Slew Rate | 1 V/µs |
| Supplier Device Package | 14-DIP |
| Voltage - Input Offset | 500 çV |
| Voltage - Supply Span (Max) [Max] | 36 V |
| Voltage - Supply Span (Min) [Min] | 8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1000 | $ 1.29 | |
Description
General part information
NJM2058 Series
General Purpose Amplifier 4 Circuit 14-DIP
