3021066F712(R)
ActiveGlobTek, Inc.
CORD 18AWG NEMA 5-15P-IEC 6.17'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3021066F712(R)
ActiveGlobTek, Inc.
CORD 18AWG NEMA 5-15P-IEC 6.17'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3021066F712(R) |
|---|---|
| 1st Connector | NEMA 5-15P |
| 2nd Connector | IEC 320-C5 |
| Approval Agency Marking | CSA, UL |
| Approved Countries | United States, Canada |
| Color | Black |
| Cord Type | SJT |
| Current Rating (Amps) | 7 A |
| Length [x] | 6.17 ft |
| Length [x] | 1.88 m |
| Number of Conductors | 3 |
| Operating Temperature | 60 °C |
| Shielding | Unshielded |
| Style | Male Pins, Female Sockets |
| Voltage Rating | 125 VAC |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.98 | |
| 10 | $ 6.12 | |||
| 25 | $ 5.52 | |||
| 50 | $ 5.12 | |||
| 100 | $ 4.75 | |||
| 300 | $ 4.24 | |||
| 500 | $ 4.03 | |||
| 1000 | $ 3.77 | |||
| 2500 | $ 3.48 | |||
Description
General part information
3021066 Series

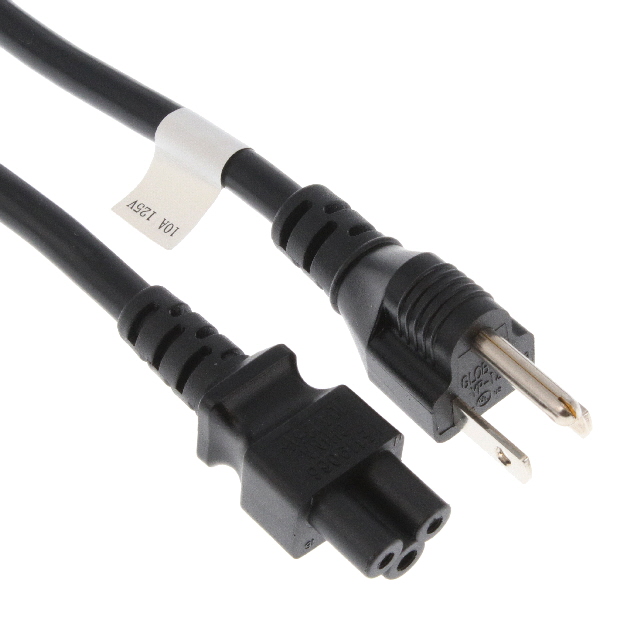

6.17' (1.88m) Power Cord Black NEMA 5-15P To IEC 320-C5 SJT
Documents
Technical documentation and resources
