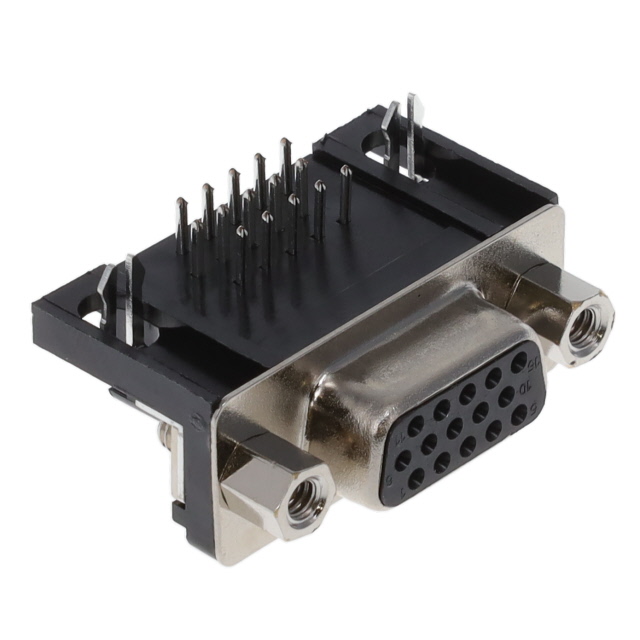

K66X-E15S-NJ30
ActiveKycon, Inc.
CONN D-SUB HD RCPT 15P R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
K66X-E15S-NJ30
ActiveKycon, Inc.
CONN D-SUB HD RCPT 15P R/A SLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | K66X-E15S-NJ30 |
|---|---|
| Backset Spacing | 8.89 mm |
| Backset Spacing | 0.35 in |
| Color | Black |
| Connector Style | High Density, D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Phosphor Bronze |
| Contact Type | Signal |
| Current Rating (Amps) | 1.5 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 15 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Shell Size, Connector Layout [custom] | High Density |
| Termination | Solder |
| Voltage Rating | 29 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 8.73 | |
| 10 | $ 7.42 | |||
| 45 | $ 6.67 | |||
| 90 | $ 6.35 | |||
| 135 | $ 6.17 | |||
| 270 | $ 5.88 | |||
| 540 | $ 5.60 | |||
| 1035 | $ 5.35 | |||
Description
General part information
K66X-E15 Series
15 Position D-Sub, High Density Receptacle, Female Sockets Connector
