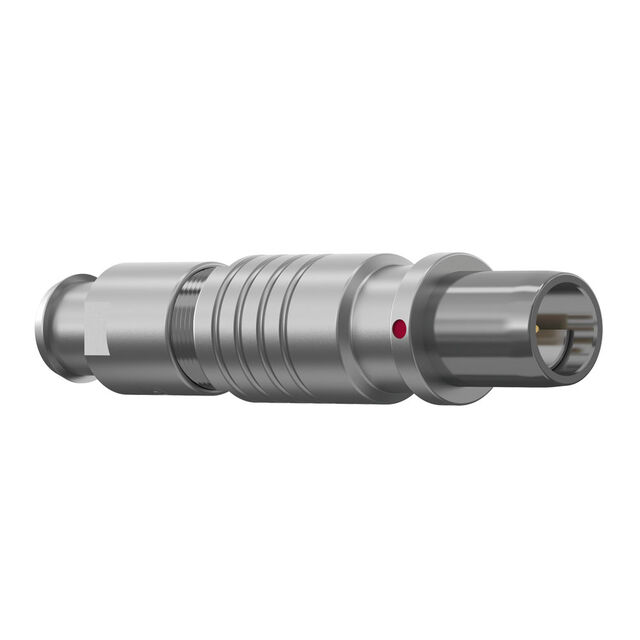

A61F1C-P07MFG0-700S
ActiveODU
ODU MINI-SNAP BREAK-AWAY PLUG, S
Deep-Dive with AI
Search across all available documentation for this part.
A61F1C-P07MFG0-700S
ActiveODU
ODU MINI-SNAP BREAK-AWAY PLUG, S
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | A61F1C-P07MFG0-700S |
|---|---|
| Applications | Military, Medical, Industrial, Testing Equipment & Measurement |
| Backshell Material, Plating | Brass, Chrome over Nickel |
| Cable Opening [Max] [custom] | 0.276 in |
| Cable Opening [Max] [custom] | 7 mm |
| Cable Opening [Min] [custom] | 6.5 mm |
| Cable Opening [Min] [custom] | 0.256 in |
| Color | Silver |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Brass |
| Current Rating (Amps) | 7.5 A |
| Fastening Type | Push-Pull |
| Features | Strain Relief, Backshell |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insert Material | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 7 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | 1 |
| Primary Material | Metal |
| Shell Finish | Chrome over Nickel |
| Shell Material | Brass |
| Shell Size - Insert | 1 |
| Shielding | Unshielded |
| Voltage Rating | 333 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 49.57 | |
Description
General part information
A61F1C-P Series
7 Position Circular Connector Plug, Male Pins Solder Cup
Documents
Technical documentation and resources
No documents available
