COM-15200

Active

SparkFun Electronics

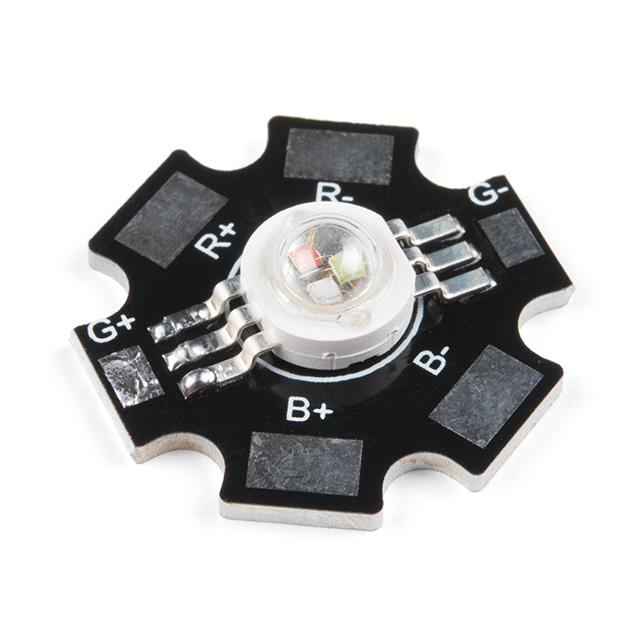

LED MOD RGB STARBOARD TRPL OUT

Search across all available documentation for this part.

Active

SparkFun Electronics

LED MOD RGB STARBOARD TRPL OUT

Technical Specifications

Parameters and characteristics for this part

Specification	COM-15200

Color	Red, Green, Blue
Configuration	Starboard
Features	IP20
Height [z]	5.2 mm
Lens Type	Domed
Size / Dimension [diameter]	18 mm
Type	LED Module
Viewing Angle	140 °
Voltage - Forward (Vf) (Typ) [custom]	3.5 V
Voltage - Forward (Vf) (Typ) [custom]	3.5 V
Voltage - Forward (Vf) (Typ) [custom]	2.4 V
Wavelength	520nm Green, 460nm Blue, 620nm Red

Part	Viewing Angle	Height [z]	Lens Type	Wavelength	Features	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Type	Size / Dimension [diameter]	Color	Configuration	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Voltage - Supply	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output / Channel	Package / Case	Package / Case	Package / Case	Data Rate	Inputs - Side 1/Side 2 [custom]	Inputs - Side 1/Side 2 [custom]	Current - DC Forward (If) (Max) [Max]	Input Type	Common Mode Transient Immunity (Min)	Output Type	Number of Channels	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Mounting Type
SparkFun Electronics COM-15200	140 °	5.2 mm	Domed	460nm Blue 520nm Green 620nm Red	IP20	3.5 V	3.5 V	2.4 V	LED Module	18 mm	Blue Green Red	Starboard
SparkFun Electronics COM-15105													100 ns	100 ns	8-PDIP	1.45 V	7 V	85 °C	-40 °C	50 mA	0.3 in	8-DIP	7.62 mm	10 Mbps	0	1	25 mA	DC	10 kV/µs	Open Collector	1	50 ns	12 ns	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.50

General part information

LED Lighting COBs Engines Modules LED Module - Red, Green, Blue (RGB) Starboard
