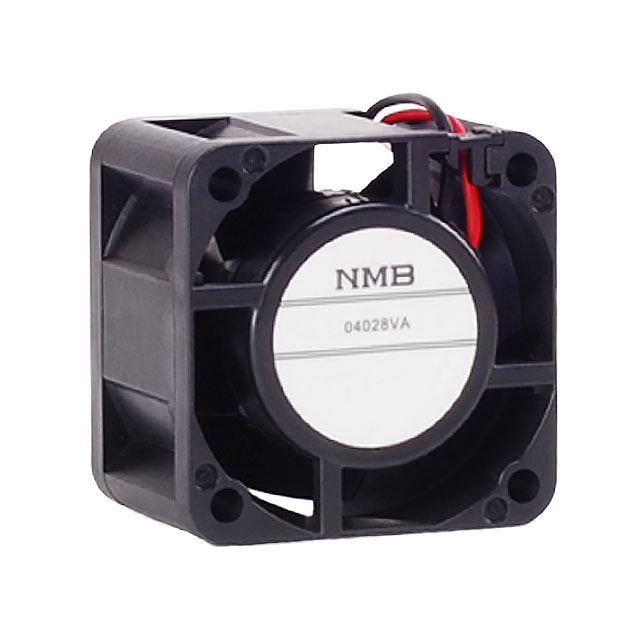

04028VA-24N-CA-00
ActiveNMB TECHNOLOGIES
DC AXIAL FAN, 24 V, SQUARE, 40 MM, 28 MM, BALL BEARING, 14.48 CFM
Deep-Dive with AI
Search across all available documentation for this part.
04028VA-24N-CA-00
ActiveNMB TECHNOLOGIES
DC AXIAL FAN, 24 V, SQUARE, 40 MM, 28 MM, BALL BEARING, 14.48 CFM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 04028VA-24N-CA-00 |
|---|---|
| Air Flow | 0.406 m³/min |
| Air Flow | 14.5 CFM |
| Bearing Type | Ball |
| Current Rating (Amps) | 100 mA |
| Fan Type | Tubeaxial |
| Ingress Protection | IP69K - Dust Tight, High Temp Water Jets, Waterproof |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 44.5 dB |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 2.4 W |
| RPM | 13000 RPM |
| Size / Dimension | Square |
| Size / Dimension [x] | 40 mm |
| Size / Dimension [z] | 40 mm |
| Static Pressure | 209.2 Pa |
| Static Pressure | 0.84 in H2O |
| Termination | 2 Wire Leads |
| Voltage - Rated | 24 VDC |
| Voltage Range [Max] | 26.4 VDC |
| Voltage Range [Min] | 10 VDC |
| Weight | 0.121 lb |
| Weight | 54.88 g |
| Width [y] | 28.1 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
04028VA Series
Fan Tubeaxial 24VDC Square - 40mm L x 40mm H Ball 14.5 CFM (0.406mł/min) 2 Wire Leads
