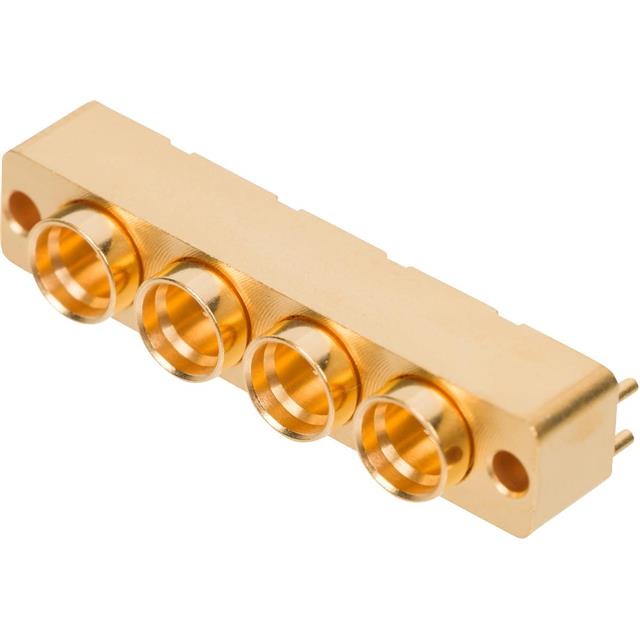

9311-00036

Active

Amphenol SV Microwave

SMP MALE PCB SURFACE MOUNT CONNE

Search across all available documentation for this part.

Active

Amphenol SV Microwave

SMP MALE PCB SURFACE MOUNT CONNE

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Features	Center Contact Material	Shield Termination	Mounting Type	Body Material	Number of Ports	Mating Cycles	Frequency - Max [Max]	Center Contact Plating	Contact Termination	Impedance	Housing Color	Body Finish	Fastening Type	Connector Type	Connector Style
Amphenol SV Microwave 9311-00036	-65 ░C	165 °C	Smooth Bore	Beryllium Copper	Solder	Surface Mount	Brass	4	1000	40 GHz	Gold	Solder	50 Ohms	Gold	Gold	Snap-On	Male Pin Plug
Amphenol SV Microwave 9311-00035	-65 ░C	165 °C	Smooth Bore	Beryllium Copper	Solder	Surface Mount	Brass	2	1000	40 GHz	Gold	Solder	50 Ohms	Gold	Gold	Snap-On	Male Pin Plug
Amphenol SV Microwave 9311-00038	-65 ░C	165 °C	Smooth Bore	Beryllium Copper	Solder	Surface Mount	Brass	4	500	40 GHz	Gold	Solder	50 Ohms	Gold	Gold	Snap-On	Male Pin Plug	SMPM
Amphenol SV Microwave 9311-00037	-65 ░C	165 °C	Smooth Bore	Beryllium Copper	Solder	Surface Mount	Brass	2	500	40 GHz	Gold	Solder	50 Ohms	Gold	Gold	Snap-On	Male Pin Plug	SMPM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 101.52

General part information

SMP Connector Plug, Male Pin 50 Ohms Surface Mount Solder
