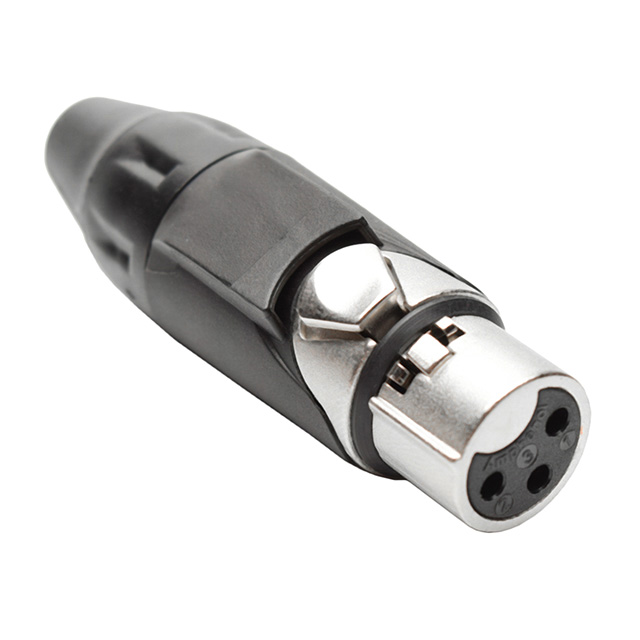

AX3F9M

Active

AMPHENOL AUDIO

CONN PLUG FMALE XLR 3P SLDR CUP

Search across all available documentation for this part.

Active

AMPHENOL AUDIO

CONN PLUG FMALE XLR 3P SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Part	Orientation	Shell Material	Shell Finish	Fastening Type	Primary Material	Ingress Protection	Color	Mounting Type	Features	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Shell Size - Insert	Contact Finish - Mating
AMPHENOL AUDIO AX3F9M	Keyed	Zinc Die Cast	Nickel	Latch Lock	Metal	IP40	Silver	Free Hanging (In-Line)	Backshell Cable Clamp	15 A	-25 °C	75 ░C	Female Sockets Plug	XLR
AMPHENOL AUDIO AX3F3M	Keyed	Zinc Die Cast	Nickel	Latch Lock	Metal	IP40	Silver	Free Hanging (In-Line)	Backshell Cable Clamp	15 A	-25 °C	75 ░C	Female Sockets Plug	XLR	Silver
AMPHENOL AUDIO AX3F2M	Keyed	Zinc Die Cast	Nickel	Latch Lock	Metal	IP40	Silver	Free Hanging (In-Line)	Backshell Cable Clamp	15 A	-25 °C	75 ░C	Female Sockets Plug	XLR	Silver
AMPHENOL AUDIO AX3F	Keyed	Zinc Die Cast	Nickel	Latch Lock	Metal	IP40	Silver	Free Hanging (In-Line)	Backshell Cable Clamp	15 A	-25 °C	75 ░C	Female Sockets Plug	XLR	Silver
AMPHENOL AUDIO AX3F9M-AU	Keyed	Zinc Die Cast	Nickel	Latch Lock	Metal	IP40	Silver	Free Hanging (In-Line)	Backshell Cable Clamp	15 A	-25 °C	75 ░C	Female Sockets Plug	XLR	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.68

General part information

3 Position Circular Connector Plug, Female Sockets Solder Cup
