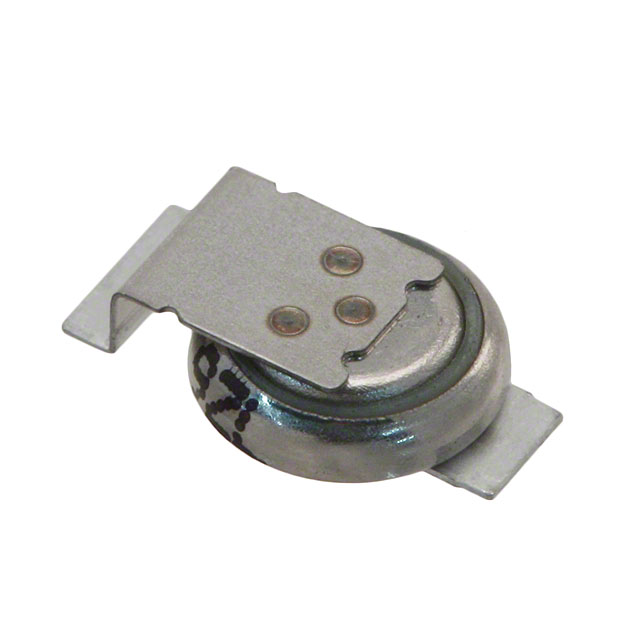

PAS414HR-VA5R

Obsolete

TAIYO YUDEN

CAP 60MF 3.3V SURFACE MNT

Search across all available documentation for this part.

Obsolete

TAIYO YUDEN

CAP 60MF 3.3V SURFACE MNT

Technical Specifications

Parameters and characteristics for this part

Specification	PAS414HR-VA5R

Capacitance	60000 µF
ESR (Equivalent Series Resistance)	80 Ohm
Height - Seated (Max) [Max]	0.061 in
Height - Seated (Max) [Max]	1.55 mm
Mounting Type	Surface Mount
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Package / Case	Coin, Wide Terminals - Same Sides
Size / Dimension [diameter]	4.8 mm
Size / Dimension [diameter]	0.189 in
Termination	SMD (SMT) Tabs
Voltage - Rated	3.3 V

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage - Rated	Mounting Type	Package / Case	ESR (Equivalent Series Resistance)
TAIYO YUDEN PAS414HR-VA5R	4.8 mm	0.189 in	60000 µF	-20 C	60 °C	SMD (SMT) Tabs	0.061 in	1.55 mm	3.3 V	Surface Mount	Coin Wide Terminals - Same Sides	80 Ohm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

60 mF (EDLC) Supercapacitor 3.3 V Coin, Wide Terminals - Same Sides 80Ohm
