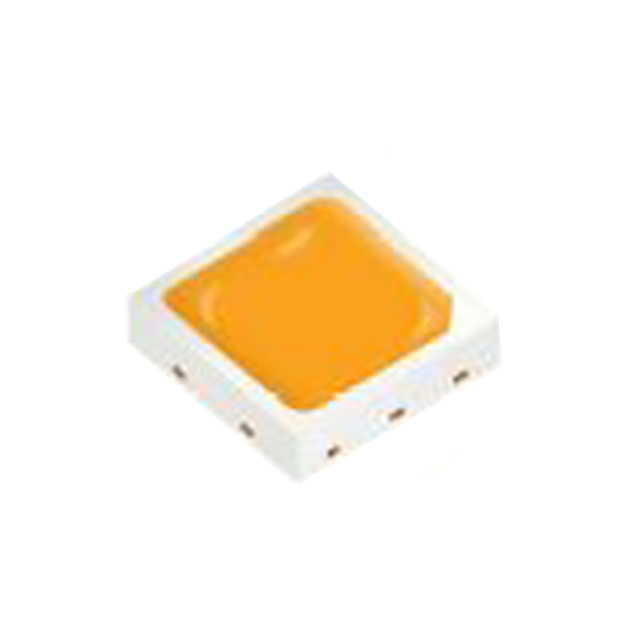

GW QSLR31.EM-K5LW-XX58-1-150-R18
Obsoleteams-OSRAM USA INC.
LED OSCONIQ WARM WHT 2700K SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GW QSLR31.EM-K5LW-XX58-1-150-R18
Obsoleteams-OSRAM USA INC.
LED OSCONIQ WARM WHT 2700K SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GW QSLR31.EM-K5LW-XX58-1-150-R18 |
|---|---|
| CCT (K) | 2700 K |
| Color | White, Warm |
| CRI (Color Rendering Index) | 80 |
| Current - Max [Max] | 200 mA |
| Current - Test | 150 mA |
| Flux @ 25°C, Current - Test | 133 lm |
| Flux @ 25°C, Current - Test [Max] | 140 lm |
| Flux @ 25°C, Current - Test [Min] | 125 lm |
| Height - Seated (Max) [Max] [z] | 0.03 in |
| Height - Seated (Max) [Max] [z] | 0.75 mm |
| Lumens/Watt @ Current - Test | 139 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | 1212 |
| Package / Case | 3030 Metric |
| Size / Dimension [x] | 0.118 in |
| Size / Dimension [x] | 3 mm |
| Size / Dimension [y] | 3 mm |
| Size / Dimension [y] | 0.118 in |
| Supplier Device Package | SMD |
| Thermal Resistance of Package [custom] | 9.5 °C/W |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 6.15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.64 | |
| 10 | $ 0.40 | |||
| 100 | $ 0.23 | |||
| 1000 | $ 0.18 | |||
| 2000 | $ 0.16 | |||
| Tape & Reel (TR) | 4500 | $ 0.16 | ||
| 9000 | $ 0.15 | |||
| 13500 | $ 0.14 | |||
| 31500 | $ 0.13 | |||
Description
General part information
GWQSLR31.E Series
LED Lighting OSCONIQ® S 3030 White, Warm 2700K 6.15V 150mA 120° 1212 (3030 Metric)
