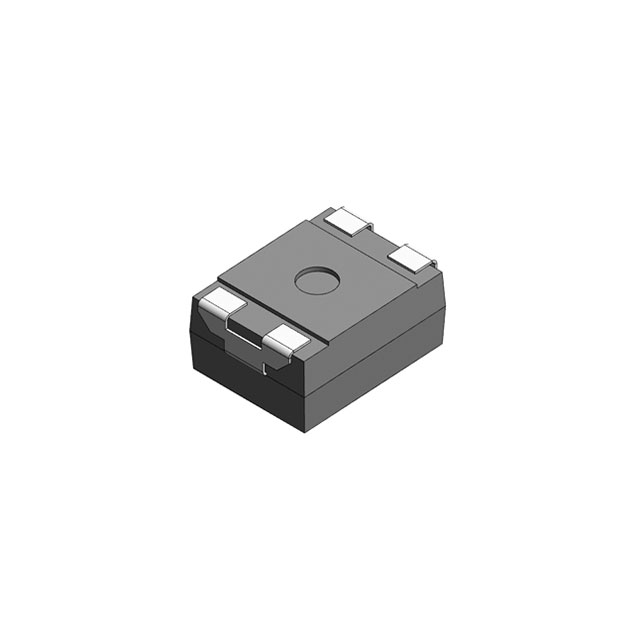

SMTJ66CAT
ActiveEaton - Electronics Division
TVS DIODE 66VWM 130VC 4SMT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SMTJ66CAT
ActiveEaton - Electronics Division
TVS DIODE 66VWM 130VC 4SMT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SMTJ66CAT |
|---|---|
| Applications | Telecom, Ethernet |
| Bidirectional Channels [custom] | 1 |
| Current - Peak Pulse (10/1000µs) | 3500 A |
| Current - Peak Pulse (10/1000µs) | 3.5 kA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 4-SMD, J-Lead |
| Power Line Protection | False |
| Supplier Device Package | 4-SMT |
| Type | Zener |
| Voltage - Breakdown (Min) [Min] | 72 V |
| Voltage - Clamping (Max) @ Ipp | 130 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 11.98 | |
| 10 | $ 10.55 | |||
| 100 | $ 9.12 | |||
| 500 | $ 8.27 | |||
| Digi-Reel® | 1 | $ 11.98 | ||
| 10 | $ 10.55 | |||
| 100 | $ 9.12 | |||
| 500 | $ 8.27 | |||
| Tape & Reel (TR) | 1000 | $ 6.72 | ||
Description
General part information
SMTJ66 Series
130V Clamp 3500A (3.5kA) (8/20µs) Ipp Tvs Diode Surface Mount 4-SMT
