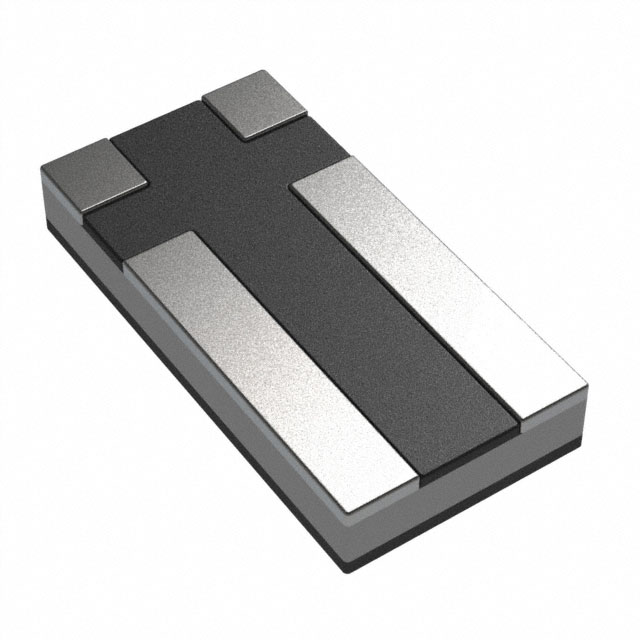

RL1632T4F-R002-FNH
ActiveDelta Electronics/Cyntec
RES 0.002 OHM 1% 1W WIDE 1206
Deep-Dive with AI
Search across all available documentation for this part.
RL1632T4F-R002-FNH
ActiveDelta Electronics/Cyntec
RES 0.002 OHM 1% 1W WIDE 1206
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RL1632T4F-R002-FNH |
|---|---|
| Composition | Metal Film |
| Features | Current Sense |
| Height - Seated (Max) [Max] [z] | 0.8 mm |
| Height - Seated (Max) [Max] [z] | 0.031 " |
| Number of Terminations | 4 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Wide 1206 (3216 Metric), 0612 |
| Power (Watts) | 1 W |
| Resistance | 2 mOhms |
| Size / Dimension [x] | 0.126 " |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 0.063 in |
| Size / Dimension [y] | 1.6 mm |
| Supplier Device Package | 0612 |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.73 | |
| 10 | $ 0.52 | |||
| 25 | $ 0.44 | |||
| 50 | $ 0.38 | |||
| 100 | $ 0.30 | |||
| 250 | $ 0.27 | |||
| 500 | $ 0.22 | |||
| 1000 | $ 0.18 | |||
| Digi-Reel® | 1 | $ 0.73 | ||
| 10 | $ 0.52 | |||
| 25 | $ 0.44 | |||
| 50 | $ 0.38 | |||
| 100 | $ 0.30 | |||
| 250 | $ 0.27 | |||
| 500 | $ 0.22 | |||
| 1000 | $ 0.18 | |||
| Tape & Reel (TR) | 4000 | $ 0.17 | ||
| 8000 | $ 0.17 | |||
| 12000 | $ 0.16 | |||
| 28000 | $ 0.16 | |||
Description
General part information
RL1632T4F Series
2 mOhms ±1% 1W Chip Resistor Wide 1206 (3216 Metric), 0612 Current Sense Metal Film
