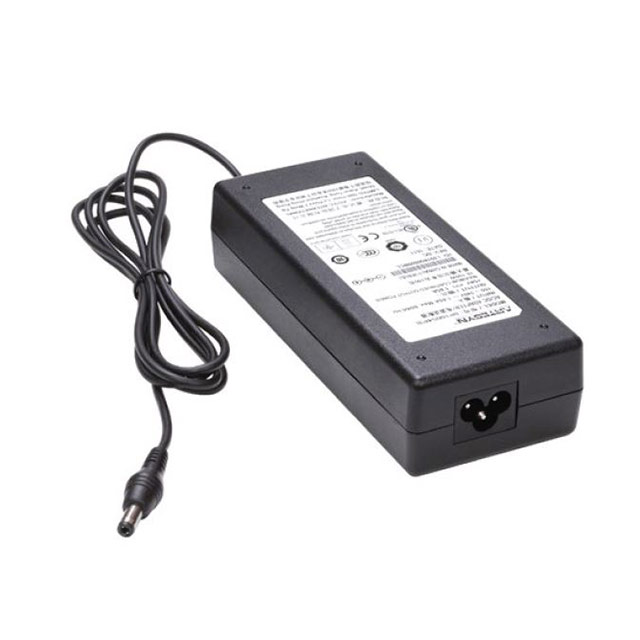

DP10054P3L
ActiveARTESYN / Advanced Energy
AC/DC DESKTOP ADAPTER 54V 100W
Deep-Dive with AI
Search across all available documentation for this part.
DP10054P3L
ActiveARTESYN / Advanced Energy
AC/DC DESKTOP ADAPTER 54V 100W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DP10054P3L |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | PSE, CE, UL, CB, CCC, TUV |
| Cord Length | 35.4 in |
| Cord Length | 0.9 m |
| Current - Output (Max) [Max] | 1.85 A |
| Efficiency | CoC Tier 2, Level VI |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C6 |
| Input Type | Cord |
| Operating Temperature [Max] | 45 °C |
| Operating Temperature [Min] | -5 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 2.5 mm, 5.5 mm |
| Polarization | Positive Center |
| Power (Watts) | 100 W |
| Region Utilized | International |
| Size / Dimension [x] | 156 mm |
| Size / Dimension [x] | 6.14 in |
| Size / Dimension [y] | 65 mm |
| Size / Dimension [y] | 2.56 " |
| Size / Dimension [z] | 37.2 mm |
| Size / Dimension [z] | 1.46 " |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 54 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 55.15 | |
| 5 | $ 54.29 | |||
| 10 | $ 51.71 | |||
| 25 | $ 48.26 | |||
| 50 | $ 47.40 | |||
Description
General part information
DP10054 Series
54V 100 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
