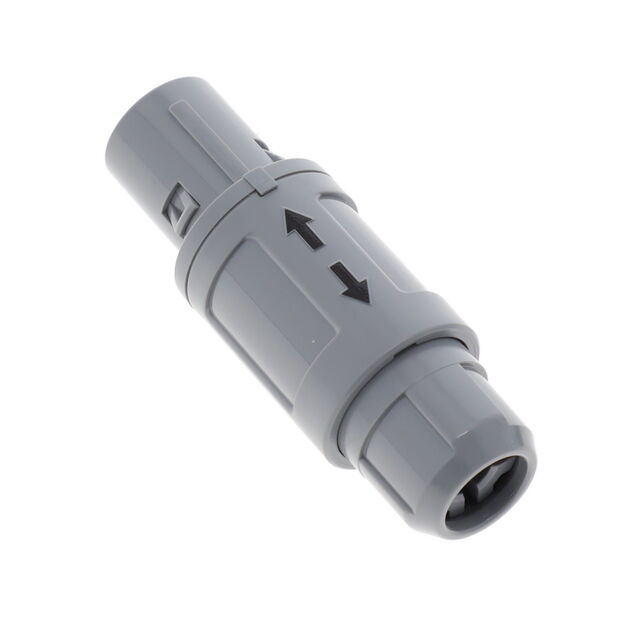

CAB.M26.GLA.C52G

Active

LEMO

CONN PLUG MALE 26P GOLD SLDR CUP

Search across all available documentation for this part.

Active

LEMO

CONN PLUG MALE 26P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	CAB.M26.GLA.C52G

Applications	Medical, Industrial, Automotive, Testing Equipment & Measurement
Backshell Material, Plating	Polysulfone (PSU)
Cable Opening [Max] [diameter]	5.2 mm
Cable Opening [Max] [diameter]	0.205 in
Cable Opening [Min] [diameter]	3.2 mm
Cable Opening [Min] [diameter]	0.126 in
Color	Gray
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Current Rating (Amps)	2 A
Fastening Type	Detent Lock, Push-Pull
Features	Backshell
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)
Number of Positions	26
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-50 °C
Orientation	B
Primary Material	Plastic
Shell Material	Polysulfone (PSU)
Shell Size - Insert	M26
Shielding	Unshielded

Part	Shielding	Applications	Primary Material	Insert Material	Number of Positions	Orientation	Connector Type	Features	Cable Opening [custom]	Cable Opening [custom]	Fastening Type	Contact Finish - Mating	Backshell Material, Plating	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size - Insert	Current Rating (Amps)	Ingress Protection	Mounting Type	Shell Material	Color	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]
LEMO CAB.M26.GLA.C72G	Unshielded	Automotive Industrial Medical Testing Equipment & Measurement	Plastic	Polyetheretherketone (PEEK)	26	B	Male Pins Plug	Backshell	5.3 mm 7.2 mm	0.209 in 0.283 in	Detent Lock Push-Pull	Gold	Polysulfone (PSU)	150 °C	-50 °C	M26	2 A	IP50	Free Hanging (In-Line)	Polysulfone (PSU)	Gray
LEMO CAB.M26.GLA.C52G	Unshielded	Automotive Industrial Medical Testing Equipment & Measurement	Plastic	Polyetheretherketone (PEEK)	26	B	Male Pins Plug	Backshell			Detent Lock Push-Pull	Gold	Polysulfone (PSU)	150 °C	-50 °C	M26	2 A	IP50	Free Hanging (In-Line)	Polysulfone (PSU)	Gray	3.2 mm	0.126 in	5.2 mm	0.205 in
LEMO CAB.M26.GLA.C72RZ	Unshielded	Automotive Industrial Medical Testing Equipment & Measurement	Plastic	Polyetheretherketone (PEEK)	26	B	Male Pins Plug	Backshell	5.3 mm 7.2 mm	0.209 in 0.283 in	Detent Lock Push-Pull	Gold	Polysulfone (PSU)	150 °C	-50 °C	M26	2 A	IP50	Free Hanging (In-Line)	Polysulfone (PSU)	Gray Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

26 Position Circular Connector Plug, Male Pins Solder Cup
