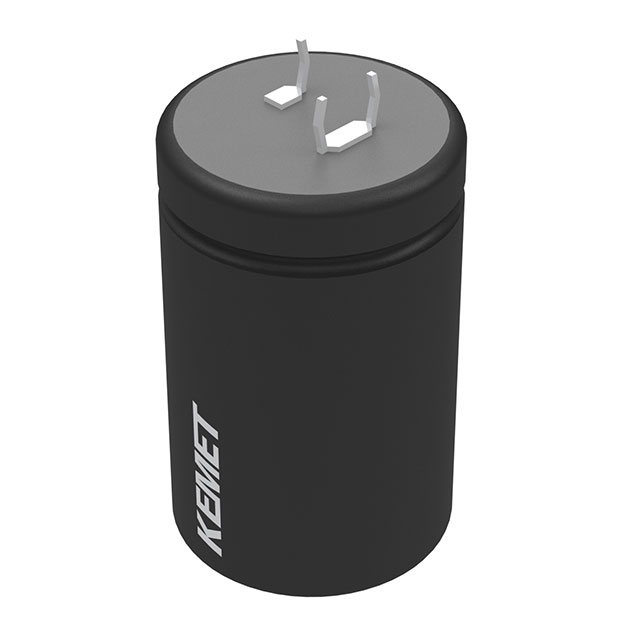

ALC80F822EH100

Active

KEMET

CAP ALUM 8200UF 20% 100V SNAP TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsALC80F822EH100 Spec Datasheet

ALC80F822EH100

Active

KEMET

CAP ALUM 8200UF 20% 100V SNAP TH

Deep-Dive with AI

DocumentsALC80F822EH100 Spec Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ALC80F822EH100

Applications	General Purpose
ESR (Equivalent Series Resistance)	43 mOhm
Height - Seated (Max) [Max] [z]	62 mm
Height - Seated (Max) [Max] [z]	2.441 in
Impedance	36 mOhms
Lead Spacing	0.394 in
Lead Spacing	10 mm
Lifetime @ Temp.	9000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can - Snap-In - 3 Lead
Polarization	Polar
Ripple Current @ High Frequency	10.59 A
Ripple Current @ Low Frequency	8.65 A
Size / Dimension [diameter]	1.575 "
Size / Dimension [diameter]	40 mm
Tolerance	20 %
Voltage - Rated	100 V

ALC80F Series

Part	Polarization	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Lifetime @ Temp.	Size / Dimension [diameter]	Size / Dimension [diameter]	ESR (Equivalent Series Resistance)	Lead Spacing	Lead Spacing	Ripple Current @ High Frequency	Mounting Type	Tolerance	Voltage - Rated	Package / Case	Ripple Current @ Low Frequency	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET ALC80F201CB350	Polar	352 mOhms	-40 °C	105 ░C	General Purpose	7000 Hrs	30 mm	1.181 inches	675 mOhm	0.394 in	10 mm	3.85 A	Through Hole	20 %	350 V	Radial Can - Snap-In - 3 Lead	1.34 A
KEMET ALC80F301DC400	Polar	210 mOhms	-40 °C	105 ░C	General Purpose	8000 Hrs	35 mm	1.378 in		0.394 in	10 mm	5.34 A	Through Hole	20 %	400 V	Radial Can - Snap-In - 3 Lead	1.93 A	300 µF	37 mm	1.457 in
KEMET ALC80F471EF500	Polar	259 mOhms	-40 °C	105 ░C	General Purpose	9000 Hrs	40 mm	1.575 "	372 mOhm	0.394 in	10 mm		Through Hole	20 %	500 V	Radial Can - Snap-In - 3 Lead	3.04 A	470 µF	52 mm	2.047 in
KEMET ALC80F161BD400	Polar	390 mOhms	-40 °C	105 ░C	General Purpose	6000 Hrs	25 mm	0.984 "	761 mOhm	0.394 in	10 mm	3.38 A	Through Hole	20 %	400 V	Radial Can - Snap-In - 3 Lead	1.18 A	160 µF			42 mm	1.654 in
KEMET ALC80F133DD040	Polar	35 mOhms	-40 °C	105 ░C	General Purpose	8000 Hrs	35 mm	1.378 in	43 mOhm	0.394 in	10 mm	9.76 A	Through Hole	20 %	40 V	Radial Can - Snap-In - 3 Lead	7.44 A	13000 µF			42 mm	1.654 in
KEMET ALC80F112EH350	Polar	71 mOhms	-40 °C	105 ░C	General Purpose	9000 Hrs	40 mm	1.575 "	131.8 mOhm	0.394 in	10 mm	9.52 A	Through Hole	20 %	350 V	Radial Can - Snap-In - 3 Lead	4.26 A	1100 µF	62 mm	2.441 in
KEMET ALC80F822EH100	Polar	36 mOhms	-40 °C	105 ░C	General Purpose	9000 Hrs	40 mm	1.575 "	43 mOhm	0.394 in	10 mm	10.59 A	Through Hole	20 %	100 V	Radial Can - Snap-In - 3 Lead	8.65 A		62 mm	2.441 in
KEMET ALC80F203DF040	Polar	25 mOhms	-40 °C	105 ░C	General Purpose	8000 Hrs	35 mm	1.378 in	30 mOhm	0.394 in	10 mm	11.36 A	Through Hole	20 %	40 V	Radial Can - Snap-In - 3 Lead	9.1 A	20000 µF	52 mm	2.047 in
KEMET ALC80F131CB450	Polar	564 mOhms	-40 °C	105 ░C	General Purpose	7000 Hrs	30 mm	1.181 inches	987 mOhm	0.394 in	10 mm	3.57 A	Through Hole	20 %	450 V	Radial Can - Snap-In - 3 Lead	1.17 A	130 µF
KEMET ALC80F821CD200	Polar	154 mOhms	-40 °C	105 ░C	General Purpose	7000 Hrs	30 mm	1.181 inches	257 mOhm	0.394 in	10 mm	5.72 A	Through Hole	20 %	200 V	Radial Can - Snap-In - 3 Lead	2.52 A	820 µF			42 mm	1.654 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	216	$ 8.41

Description

General part information

ALC80F Series

8200 µF 100 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In - 3 Lead 43mOhm @ 100Hz 9000 Hrs @ 105°C

Documents

Technical documentation and resources

ALC80F822EH100 Spec

Datasheet
