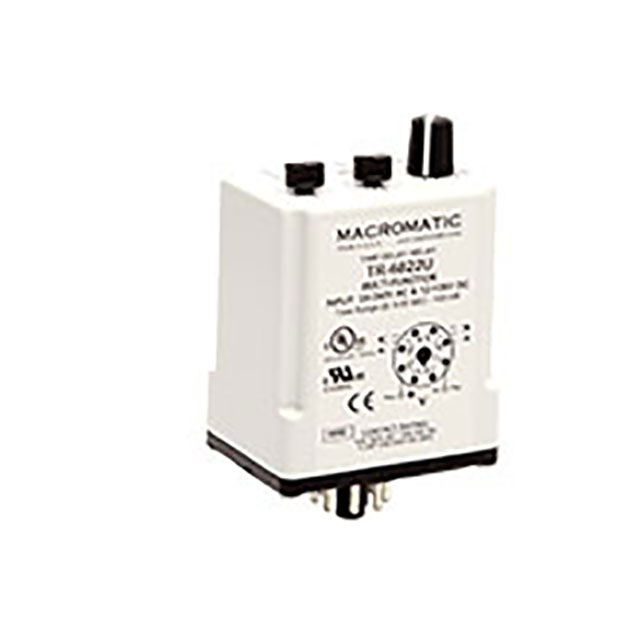

TR-6822U
ActiveMacromatic Industrial Controls
RELAY TIME DELAY 100HR 10A 240V
Deep-Dive with AI
Search across all available documentation for this part.
TR-6822U
ActiveMacromatic Industrial Controls
RELAY TIME DELAY 100HR 10A 240V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TR-6822U |
|---|---|
| Circuit | DPDT (2 Form C) |
| Contact Rating @ Voltage | 240 VAC, 30 VDC, 10 A |
| Delay Time [Max] | 100 Hrs |
| Delay Time [Min] | 0.05 Sec |
| Mounting Type | Socketable |
| Relay Type | Mechanical Relay |
| Termination Style | Plug In, 8 Pin (Octal) |
| Timing Adjustment Method | Hand Dial |
| Timing Initiate Method | Input Voltage |
| Voltage - Supply [Max] | 240 VAC, 125 VDC |
| Voltage - Supply [Min] | 24 VAC, 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 114.84 | |
Description
General part information
TR-6822 Series
Interval, On-Delay Time Delay Relay DPDT (2 Form C) 0.05 Sec ~ 100 Hrs Delay 10A @ 240VAC/30VDC Socketable
