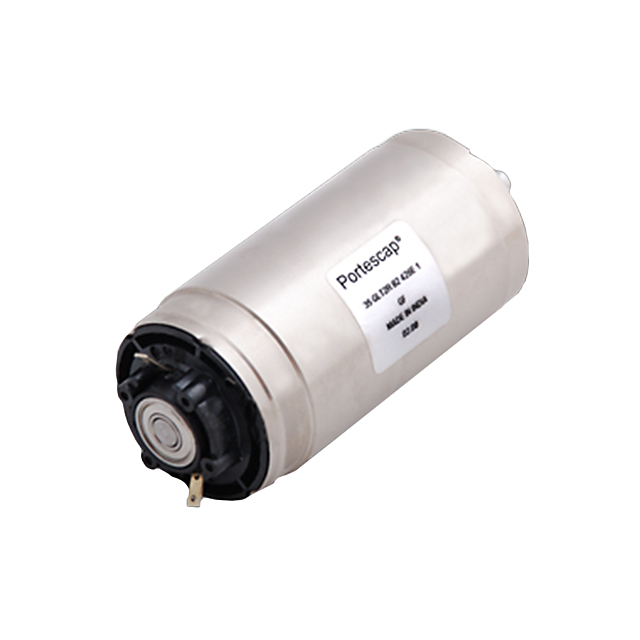

35GLT2R82-326P.1
ActivePortescap
STANDARD MOTOR 10000 RPM 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
35GLT2R82-326P.1
ActivePortescap
STANDARD MOTOR 10000 RPM 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 35GLT2R82-326P.1 |
|---|---|
| Diameter - Shaft [diameter] | 0.197 in |
| Diameter - Shaft [diameter] | 5 mm |
| Function | Standard |
| Length - Shaft and Bearing [x] | 12.5 mm |
| Length - Shaft and Bearing [x] | 0.492 in |
| Motor Type | Brushed |
| Mounting Hole Spacing | 22 mm |
| Mounting Hole Spacing | 0.866 in |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Power - Rated | 124 W |
| RPM | 10000 RPM |
| Size / Dimension [diameter] | 1.378 in |
| Size / Dimension [diameter] | 35 mm |
| Termination Style | Solder Tab |
| Torque - Rated (oz-in / mNm) | 18.7 oz-in |
| Torque - Rated (oz-in / mNm) | 132 mNm |
| Type | DC Motor |
| Voltage - Rated | 24 VDC |
| Weight [custom] | 360.15 g |
| Weight [custom] | 0.794 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 401.00 | |
| 5 | $ 393.29 | |||
| 10 | $ 385.58 | |||
Description
General part information
35GLT2R82 Series
Brushed DC Motor Standard 10000 RPM 124W 24VDC
