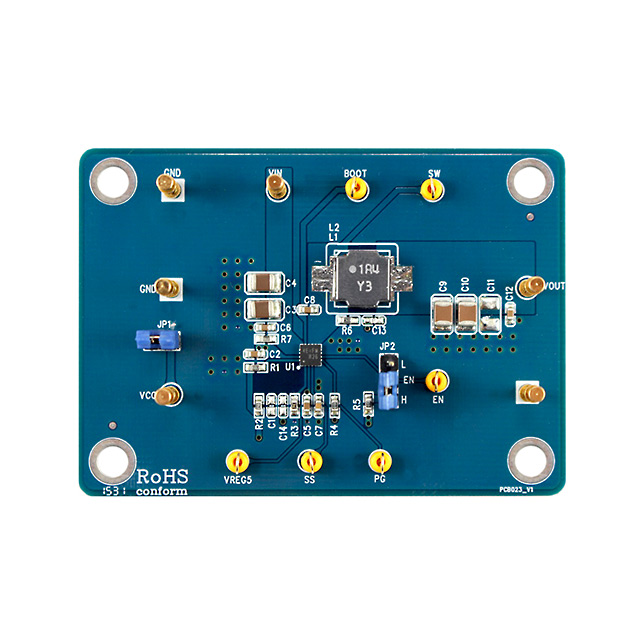

EVB_RT2855BHGQW

Active

Richtek USA Inc.

EVAL MODULE FOR RT2855BHGQW

Search across all available documentation for this part.

Active

Richtek USA Inc.

EVAL MODULE FOR RT2855BHGQW

Technical Specifications

Parameters and characteristics for this part

Part	Main Purpose	Regulator Topology	Frequency - Switching	Outputs and Type	Outputs and Type	Voltage - Output	Board Type	Current - Output	Voltage - Input [Max]	Voltage - Input [Min]	Supplied Contents	Utilized IC / Part	Topology	Voltage - Input (Min) [Min]	Voltage - Output (Max) [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Output Configuration	Voltage - Input (Max) [Max]	Output Type	Function	Synchronous Rectifier	Package / Case	Number of Outputs	Supplier Device Package
Richtek USA Inc. EVB_RT2855BHGQW	DC/DC Step Down	Buck	650 kHz	Non-Isolated	1	1.05 V	Fully Populated	4 A	18 V	4.5 V	Board(s)	RT2855B
Richtek USA Inc. RT2855BLGQW			650 kHz					4 A					Buck	4.5 V	7 V	Surface Mount	85 °C	-40 °C	Positive	18 V	Adjustable	Step-Down		16-WFQFN Exposed Pad	1	16-WQFN (3x3)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 44.90

General part information

RT2855B ACOT® DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board

Technical documentation and resources
