DS01-254-S-07BE

Active

CUI Devices

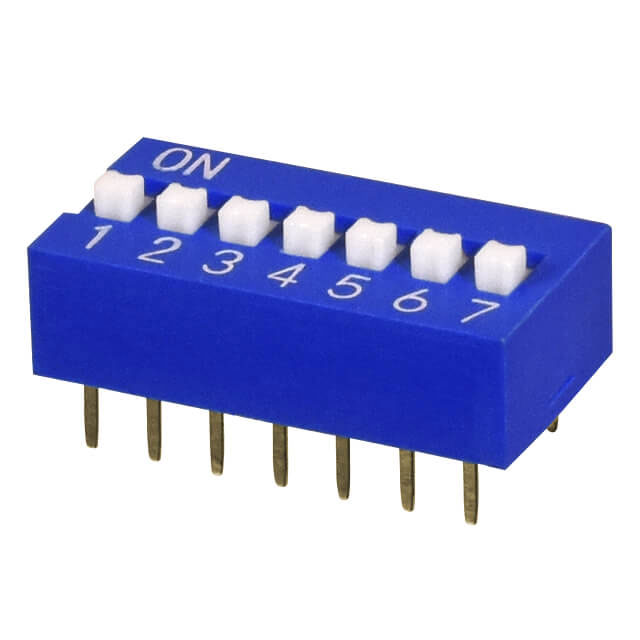

SWITCH SLIDE DIP SPST 0.025A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DS01-254-S-07BE

Active

CUI Devices

SWITCH SLIDE DIP SPST 0.025A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DS01-254-S-07BE

Actuator Level	Raised
Actuator Type	Slide (Standard)
Body Material	Polybutylene Terephthalate (PBT)
Circuit	SPST
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	25 mA
Electrical Life	2000 Steps
Height Above Board	6.7 mm
Height Above Board	0.264 "
Length [x]	19.2 mm
Length [x]	0.756 "
Mounting Type	Through Hole
Number of Positions	7
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	PC Pin
Voltage Rating	24 VDC
Washable	False

DS01C-254 Series

Part	Length [x]	Length [x]	Contact Material	Body Material	Pitch [x]	Pitch	Pitch [x]	Contact Finish	Actuator Level	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Electrical Life	Current Rating (Amps)	Mounting Type	Termination Style	Voltage Rating	Circuit	Actuator Type	Height Above Board	Height Above Board	Length	Length	Length
CUI Devices DS01-254-S-07BE	19.2 mm	0.756 "	Copper Alloy	Polybutylene Terephthalate (PBT)	0.1 in	Full	2.54 mm	Gold	Raised	85 °C	-40 °C	7	2000 Steps	25 mA	Through Hole	PC Pin	24 VDC	SPST	Slide (Standard)	6.7 mm	0.264 "
CUI Devices DS01-254-S-08BE		0.856 in	Copper Alloy	Polybutylene Terephthalate (PBT)	0.1 in	Full	2.54 mm	Gold	Raised	85 °C	-40 °C	8	2000 Steps	25 mA	Through Hole	PC Pin	24 VDC	SPST	Slide (Standard)	6.7 mm	0.264 "	21.74 mm
CUI Devices DS01-254-S-01BE	3.96 mm	0.156 "	Copper Alloy	Polybutylene Terephthalate (PBT)	0.1 in	Full	2.54 mm	Gold	Raised	85 °C	-40 °C	1	2000 Steps	25 mA	Through Hole	PC Pin	24 VDC	SPST	Slide (Standard)	6.7 mm	0.264 "
CUI Devices DS01C-254-S-06BE			Copper Alloy	Polybutylene Terephthalate (PBT)	0.1 in	Full	2.54 mm	Gold	Raised	85 °C	-40 °C	6	2000 Steps	25 mA	Through Hole	PC Pin	24 VDC	SPST	Slide (Standard)	6.7 mm	0.264 "	16.66 mm	0.656 in
CUI Devices DS01-254-S-05BE	14.12 mm	0.556 "	Copper Alloy	Polybutylene Terephthalate (PBT)	0.1 in	Full	2.54 mm	Gold	Raised	85 °C	-40 °C		2000 Steps	25 mA	Through Hole	PC Pin	24 VDC	SPST	Slide (Standard)	6.7 mm	0.264 "
CUI Devices DS01-254-L-04BE			Copper Alloy	Polybutylene Terephthalate (PBT)	0.1 in	Full	2.54 mm	Gold	Raised	85 °C	-40 °C	4	2000 Steps	25 mA	Through Hole	PC Pin	24 VDC	SPST	Slide (Standard)	6.7 mm	0.264 "	11.58 mm	0.456 in
CUI Devices DS01C-254-S-12BE			Copper Alloy	Polybutylene Terephthalate (PBT)	0.1 in	Full	2.54 mm	Gold	Raised	85 °C	-40 °C	12	2000 Steps	25 mA	Through Hole	PC Pin	24 VDC	SPST	Slide (Standard)	6.7 mm	0.264 "	31.9 mm		1.256 in
CUI Devices DS01C-254-S-03BE		0.356 in	Copper Alloy	Polybutylene Terephthalate (PBT)	0.1 in	Full	2.54 mm	Gold	Raised	85 °C	-40 °C		2000 Steps	25 mA	Through Hole	PC Pin	24 VDC	SPST	Slide (Standard)	6.7 mm	0.264 "	9.04 mm
CUI Devices DS01-254-L-01BE	3.96 mm	0.156 "	Copper Alloy	Polybutylene Terephthalate (PBT)	0.1 in	Full	2.54 mm	Gold	Raised	85 °C	-40 °C	1	2000 Steps	25 mA	Through Hole	PC Pin	24 VDC	SPST	Slide (Standard)	6.7 mm	0.264 "
CUI Devices DS01C-254-L-03BE		0.356 in	Copper Alloy	Polybutylene Terephthalate (PBT)	0.1 in	Full	2.54 mm	Gold	Raised	85 °C	-40 °C		2000 Steps	25 mA	Through Hole	PC Pin	24 VDC	SPST	Slide (Standard)	6.7 mm	0.264 "	9.04 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	2016	$ 0.64

Description

General part information

DS01C-254 Series

Dip Switch SPST 7 Position Through Hole Slide (Standard) Actuator 25mA 24VDC
