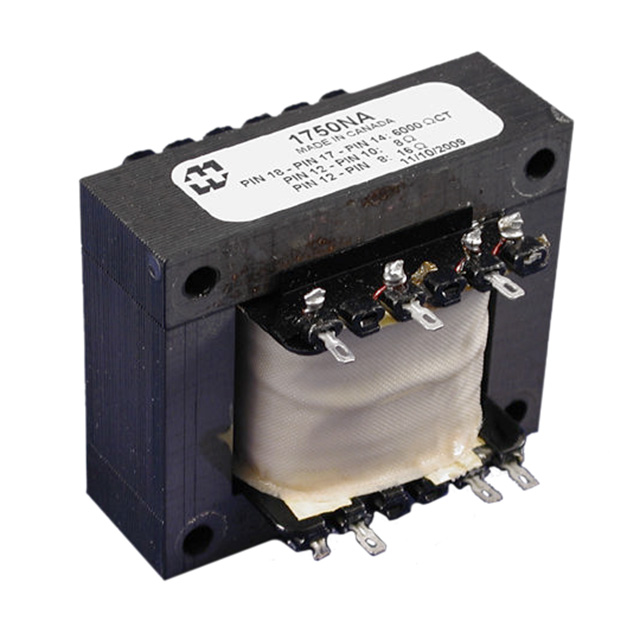

1750NA

Active

Hammond Manufacturing

AUDIO XFMR 6KCT / 8, 16 CHAS MNT

Search across all available documentation for this part.

Active

Hammond Manufacturing

AUDIO XFMR 6KCT / 8, 16 CHAS MNT

Technical Specifications

Parameters and characteristics for this part

Specification	1750NA

DC Resistance (DCR) - Primary	74.41 Ohm, 147.4 Ohm, 73.2 Ohm
DC Resistance (DCR) - Secondary [custom]	820 mOhm, 580 mOhm, 300 mOhm
Frequency Range [Max]	12 kHz
Frequency Range [Min]	50 Hz
Frequency Response	1 dB
Height - Seated (Max) [Max] [z]	64.14 mm
Height - Seated (Max) [Max] [z]	2.525 in
Impedance - Primary (Ohms)	6kCT
Impedance - Secondary (Ohms)	8 Ohms, 16 Ohms
Mounting Type	Chassis Mount
Power Level	30 W
Size / Dimension [x]	76.2 mm
Size / Dimension [x]	3 "
Size / Dimension [y]	62.61 mm
Size / Dimension [y]	2.465 "
Termination Style	Solder Lug
Voltage - Isolation	2500 V

Part	DC Resistance (DCR) - Secondary [custom]	Power Level	Impedance - Secondary (Ohms)	Frequency Range [Min]	Frequency Range [Max]	Mounting Type	Voltage - Isolation	Termination Style	DC Resistance (DCR) - Primary	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Frequency Response	Impedance - Primary (Ohms)
Hammond Manufacturing 1750NA	300 mOhm 580 mOhm 820 mOhm	30 W	8 Ohms 16 Ohms	50 Hz	12 kHz	Chassis Mount	2500 V	Solder Lug	73.2 Ohm 74.41 Ohm 147.4 Ohm	76.2 mm	3 "	62.61 mm	2.465 "	64.14 mm	2.525 in	1 dB	6kCT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6kCT Impedance Primary Ohms 8, 16 Impedance Secondary Ohms Audio Transformer 50Hz ~ 12kHz Chassis Mount
