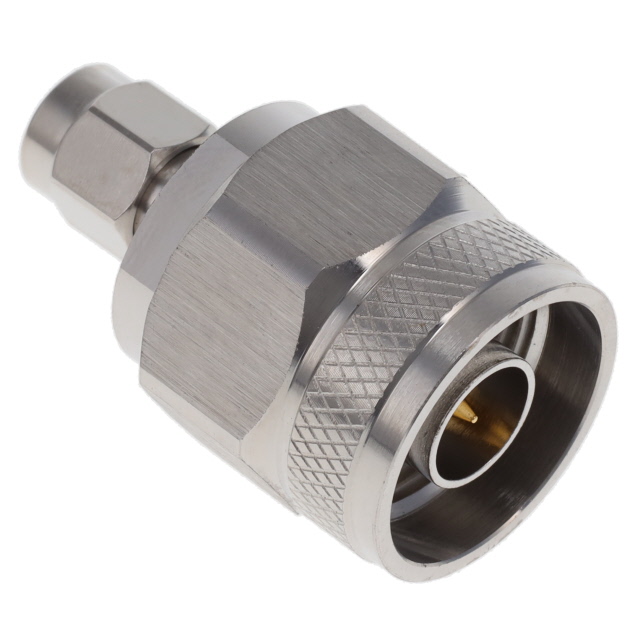

CT3340A

Active

Cal Test Electronics

CONN ADAPT N PLUG TO SMA PLUG

Search across all available documentation for this part.

Active

Cal Test Electronics

CONN ADAPT N PLUG TO SMA PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	CT3340A

Adapter Type	Plug to Plug
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Between Series
Convert From (Adapter End)	SMA Plug, Male Pin
Convert To (Adapter End)	Male Pin, N Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Style	Straight

Part	Body Material	Dielectric Material	Center Contact Plating	Impedance	Frequency - Max [Max]	Body Finish	Convert From (Adapter End)	Center Gender	Convert To (Adapter End)	Conversion Type	Style	Mounting Type	Adapter Type	Center Contact Material
Cal Test Electronics CT3340A	Brass	Polytetrafluoroethylene (PTFE)	Gold	50 Ohms	12 GHz	Nickel	SMA Plug Male Pin	Male to Male	Male Pin N Plug	Between Series	Straight	Free Hanging (In-Line)	Plug to Plug	Beryllium Copper Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 49.00

General part information

Adapter Coaxial Connector SMA Plug, Male Pin To N Plug, Male Pin 50 Ohms
