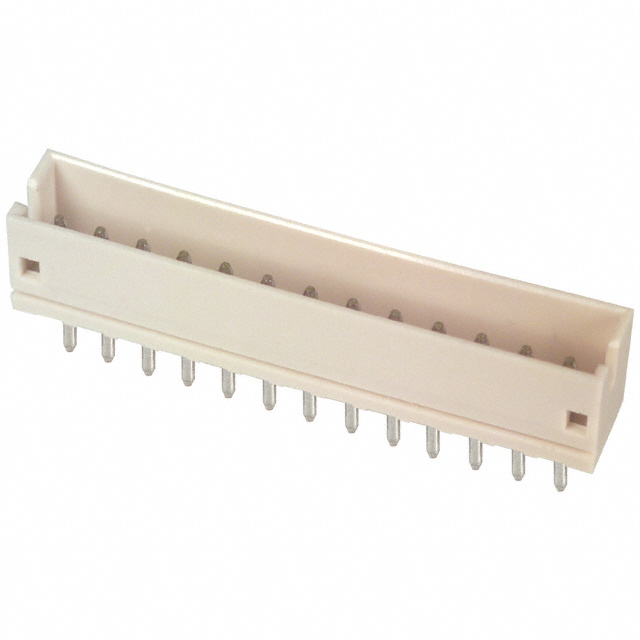

B13B-ZR

Active

JST Sales America Inc.

CONN HEADER VERT 13POS 1.5MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER VERT 13POS 1.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	B13B-ZR

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating [custom]	2.4 mm
Contact Length - Mating [custom]	0.094 in
Contact Length - Post [x]	0.106 in
Contact Length - Post [x]	2.69 mm
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Detent Lock
Insulation Color	Natural
Insulation Height	0.177 in
Insulation Height	4.5 mm
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mated Stacking Heights	5.6 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	13
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Overall Contact Length	0.256 in
Overall Contact Length	6.5 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	50 V

Part	Mated Stacking Heights	Connector Type	Contact Type	Insulation Height	Insulation Height	Contact Shape	Fastening Type	Number of Rows	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Termination	Contact Finish - Post	Style	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Insulation Color	Voltage Rating	Material Flammability Rating	Number of Positions	Contact Length - Mating [custom]	Contact Length - Mating [custom]	Mounting Type	Shrouding	Contact Material	Overall Contact Length	Overall Contact Length	Features
JST Sales America Inc. B13B-ZR-3.4(LF)(SN)	5.6 mm	Header	Male Pin	0.177 in	4.5 mm	Circular	Detent Lock	1	All	0.134 in	3.4 mm	Solder	Tin	Board to Cable/Wire	-25 °C	85 °C	Polyamide (PA66) Nylon 6/6 Glass Filled	Natural	50 V	UL94 V-0	13	2.4 mm	0.094 in	Through Hole	Shrouded - 4 Wall	Brass
JST Sales America Inc. B13B-ZR	5.6 mm	Header	Male Pin	0.177 in	4.5 mm	Circular	Detent Lock	1	All	0.106 in	2.69 mm	Solder	Tin	Board to Cable/Wire	-25 °C	85 °C	Polyamide (PA66) Nylon 6/6 Glass Filled	Natural	50 V	UL94 V-0	13	2.4 mm	0.094 in	Through Hole	Shrouded - 4 Wall	Brass	0.256 in	6.5 mm
JST Sales America Inc. B13B-ZR-SM4-TF	6.4 mm	Header	Male Pin	0.197 in	5 mm	Circular	Detent Lock	1	All			Solder	Tin	Board to Cable/Wire	-25 °C	85 °C	Glass Filled Nylon 6T Polyamide (PA6T)	Natural	50 V	UL94 V-0	13			Surface Mount	Shrouded - 4 Wall	Brass			Solder Retention

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 13 position 0.059" (1.50mm)
