XHP70A-00-0000-0D0BN450E-SB01

Obsolete

New Energy

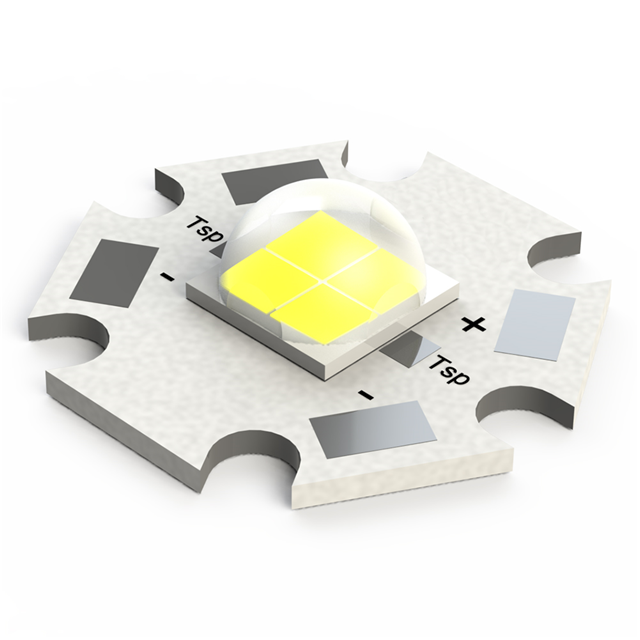

LED MOD XLAMP WH STARBOARD 5000K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XHP70A-00-0000-0D0BN450E-SB01

Obsolete

New Energy

LED MOD XLAMP WH STARBOARD 5000K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XHP70A-00-0000-0D0BN450E-SB01

CCT (K)	5000 K
CCT (K)	5-Step MacAdam Ellipse
Color	Cool, White
Configuration	Starboard
CRI (Color Rendering Index)	70
Current - Max	2.4 A, 4.8 A
Current - Test	1.05 A
Current - Test	2.1 A
Lens Type	Domed
Lumens/Watt @ Current - Test	145 lm/W
Luminous Flux @ Current/Temperature	1770 lm
Luminous Flux @ Current/Temperature [Max]	1830 lm
Luminous Flux @ Current/Temperature [Min]	1710 lm
Size / Dimension [diameter]	19.89 mm
Temperature - Test	85 °C
Type	LED Module
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	6 V, 12 V

XHP70A Series

Part	Voltage - Forward (Vf) (Typ)	Configuration	Type	Current - Test	Temperature - Test	Lens Type	CRI (Color Rendering Index)	CCT (K)	Height [z]	Color	Size / Dimension [x]	Size / Dimension [y]	Lumens/Watt @ Current - Test	Luminous Flux @ Current/Temperature	Size / Dimension [diameter]	Viewing Angle	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature [Min]	Current - Max	CCT (K)	Current - Test
New Energy XHP70A-0S-04-0D0UJ427G	46.4 V	Square	LED Module	1.05 A	85 °C	Domed	90	2700 K	1.52 mm	Warm White	70 mm	70 mm
New Energy XHP70A-0L-03-0D0HN20E2	34.8 V	Linear Light Strip	LED Module	1.05 A	85 °C	Domed	80		1.52 mm	White	5.2 in	32.99 mm
New Energy XHP70A-0L-03-0D0HM227G	34.8 V	Linear Light Strip	LED Module	1.05 A	85 °C	Domed	80	2700 K		Warm White	5.2 in	1.3 in	113 lm/W	4140 lm
New Energy XHP70A-0L-02-0D0HN20E2		Linear Light Strip	LED Module	1.05 A	85 °C	Domed	80		1.52 mm	White	93.98 mm	32.99 mm
New Energy XHP70A-0L-04-0D0HM227G	46.4 V	Linear Light Strip	LED Module	1.05 A	85 °C	Domed	80	2700 K		Warm White	6.7 in	1.3 in	113 lm/W	5520 lm
New Energy XHP70A-0S-01-0D0BN40E2	11.6 V	Square	LED Module	1.05 A	85 °C	Domed	70	5700 K		Cool White	36.83 mm	36.83 mm	140 lm/W	1710 lm
New Energy XHP70A-0S-01-0D0BM430E	11.6 V	Square	LED Module	1.05 A	85 °C	Domed	70	3000 K		Warm White	36.83 mm	36.83 mm	122 lm/W	1485 lm
New Energy XHP70A-00-0000-0D0BN450E-SB01	6 V 12 V	Starboard	LED Module	2.1 A	85 °C	Domed	70	5000 K		Cool White			145 lm/W	1770 lm	19.89 mm	120 °	1830 lm	1710 lm	2.4 A 4.8 A	5-Step MacAdam Ellipse	1.05 A
New Energy XHP70A-0L-04-0D0UJ427G	46.4 V	Linear Light Strip	LED Module	1.05 A	85 °C	Domed	90	2700 K	1.52 mm	Warm White	6.7 in	32.99 mm
New Energy XHP70A-0S-04-0D0BN240E	46.4 V	Square	LED Module	1.05 A	85 °C	Domed	70	4000 K		Neutral White	73.15 mm	73.15 mm	131 lm/W	6360 lm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

XHP70A Series

LED Lighting COBs Engines Modules LED Module Xlamp® XHP70 White, Cool Starboard
