RP1285BFC

Active

Hammond Manufacturing

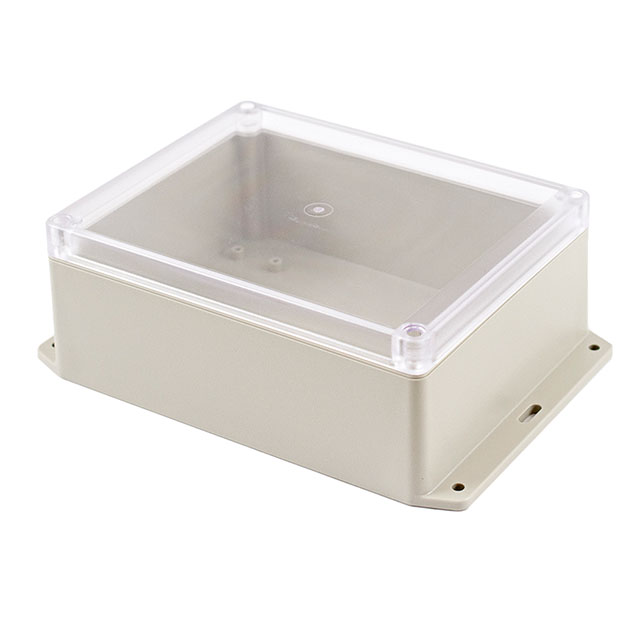

BOX ABS GRAY/CLR 8.66"L X 5.91"W

Search across all available documentation for this part.

Active

Hammond Manufacturing

BOX ABS GRAY/CLR 8.66"L X 5.91"W

Technical Specifications

Parameters and characteristics for this part

Specification	RP1285BFC

Area (L x W)	330 cm²
Area (L x W)	51.2 in²
Color	Gray, Clear Cover/Door
Container Type	Box
Design	Cover Included
Height [z]	2.95 "
Height [z]	74.93 mm
Material	ABS
Material Flammability Rating	UL94 HB
Size / Dimension [x]	8.66 "
Size / Dimension [x]	219.96 mm
Size / Dimension [y]	150.11 mm
Size / Dimension [y]	5.91 in
Thickness	2.03 mm
Thickness	0.08 "

Part	Design	Material	Thickness	Thickness	Area (L x W)	Area (L x W)	Color	Material Flammability Rating	Height [z]	Height [z]	Container Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]
Hammond Manufacturing RP1285BFC	Cover Included	ABS	2.03 mm	0.08 "	330 cm²	51.2 in²	Clear Cover/Door Gray	UL94 HB	2.95 "	74.93 mm	Box	150.11 mm	8.66 "	219.96 mm	5.91 in
Hammond Manufacturing RP1285BF	Cover Included	ABS	2.03 mm	0.08 "	330 cm²	51.2 in²	Gray	UL94 HB	2.95 "	74.93 mm	Box	150.11 mm	8.66 "	219.96 mm	5.91 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box ABS Gray, Clear Cover/Door Cover Included 8.660" L x 5.910" W (219.96mm x 150.11mm) X 2.950" (74.93mm)

Technical documentation and resources

No documents available
