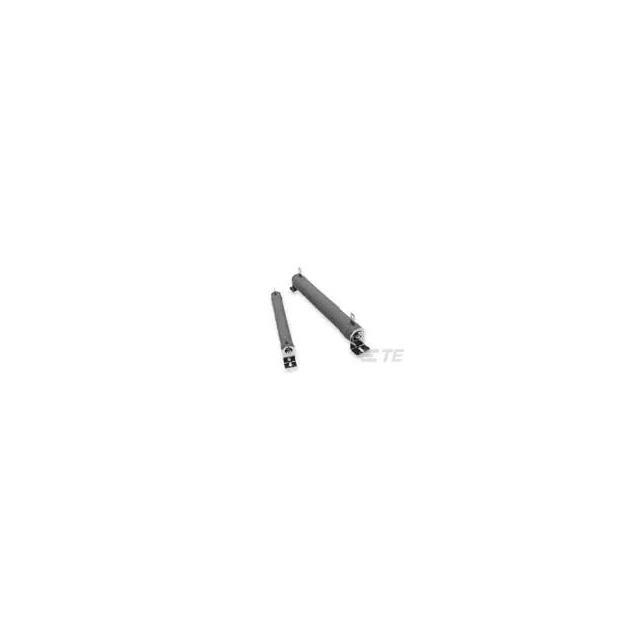

1-1879453-3
ActiveTE Connectivity Passive Product
TE 1000W 10R 5% BRACKET
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-1879453-3
ActiveTE Connectivity Passive Product
TE 1000W 10R 5% BRACKET
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1879453-3 |
|---|---|
| Coating, Housing Type | Silicone Coated |
| Composition | Wirewound |
| Lead Style | Solder Lugs |
| Mounting Feature | Brackets |
| Operating Temperature [Max] | 225 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | Radial, Tubular |
| Power (Watts) | 1 kW |
| Resistance | 10 Ohms |
| Size / Dimension [diameter] | 60 mm |
| Size / Dimension [diameter] | 2.362 in |
| Size / Dimension [x] | 11.811 in |
| Size / Dimension [x] | 300 mm |
| Temperature Coefficient | 440 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 116.69 | |
| 100 | $ 109.28 | |||
| 200 | $ 101.87 | |||
| 500 | $ 94.46 | |||
Description
General part information
1879453 Series
10 Ohms ±5% 1000W Wirewound Chassis Mount Resistor
