5-102694-2
UnknownTE Connectivity Raychem Cable Protection

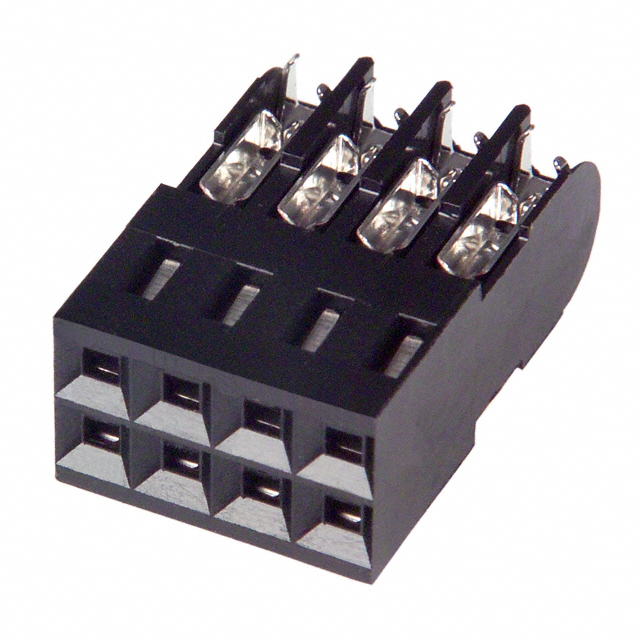

CONN RCPT 8POS IDC 22-26AWG GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5-102694-2
UnknownTE Connectivity Raychem Cable Protection
CONN RCPT 8POS IDC 22-26AWG GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5-102694-2 |
|---|---|
| Cable Termination | IDC |
| Color | Black |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Type | Female Socket |
| Features | Closed End |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Row Spacing | 2.54 mm |
| Row Spacing [x] | 0.1 in |
| Wire Gauge [Max] | 26 AWG |
| Wire Gauge [Min] | 22 AWG |
| Wire Type | Discrete or Ribbon Cable |
102694 Series
| Part | Color | Features | Contact Finish | Number of Positions | Pitch [x] | Pitch [x] | Number of Rows | Wire Type | Connector Type | Wire Gauge [Min] | Wire Gauge [Max] | Row Spacing [x] | Row Spacing | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Cable Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Black | Closed End | Gold | 6 | 2.54 mm | 0.1 in | 2 | Discrete or Ribbon Cable | Receptacle | 22 AWG | 26 AWG | 0.1 in | 2.54 mm | Female Socket | 0.76 Ám | 30 Áin | Free Hanging (In-Line) | IDC |
TE Connectivity Raychem Cable Protection | Black | Closed End | Gold | 8 | 2.54 mm | 0.1 in | 2 | Discrete or Ribbon Cable | Receptacle | 22 AWG | 26 AWG | 0.1 in | 2.54 mm | Female Socket | 0.76 Ám | 30 Áin | Free Hanging (In-Line) | IDC |
TE Connectivity Raychem Cable Protection | Black | Closed End | Gold | 20 | 2.54 mm | 0.1 in | 2 | Discrete or Ribbon Cable | Receptacle | 22 AWG | 26 AWG | 0.1 in | 2.54 mm | Female Socket | 0.76 Ám | 30 Áin | Free Hanging (In-Line) | IDC |
TE Connectivity Raychem Cable Protection | Black | Closed End | Gold | 14 | 2.54 mm | 0.1 in | 2 | Discrete or Ribbon Cable | Receptacle | 22 AWG | 26 AWG | 0.1 in | 2.54 mm | Female Socket | 0.76 Ám | 30 Áin | Free Hanging (In-Line) | IDC |
TE Connectivity Raychem Cable Protection | Black | Closed End | Gold | 6 | 2.54 mm | 0.1 in | 2 | Discrete or Ribbon Cable | Receptacle | 22 AWG | 26 AWG | 0.1 in | 2.54 mm | Female Socket | 0.76 Ám | 30 Áin | Free Hanging (In-Line) | IDC |
TE Connectivity Raychem Cable Protection | Black | Closed End | Gold | 14 | 2.54 mm | 0.1 in | 2 | Discrete or Ribbon Cable | Receptacle | 22 AWG | 26 AWG | 0.1 in | 2.54 mm | Female Socket | 0.76 Ám | 30 Áin | Free Hanging (In-Line) | IDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 310 | $ 3.43 | |
Description
General part information
102694 Series
8 Position Rectangular Receptacle Connector IDC Gold 22-26 AWG
