1074764

Active

SICK, Inc.

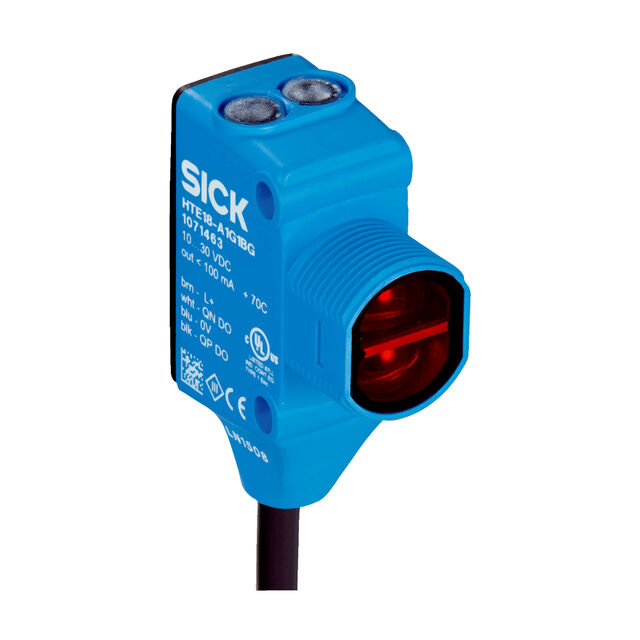

SENSOR RETROREFLECTIVE 3M NPN

Deep-Dive with AI

Search across all available documentation for this part.

1074764

Active

SICK, Inc.

SENSOR RETROREFLECTIVE 3M NPN

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1074764

Cable Length	78.74 in
Cable Length	2 m
Connection Method	Cable
Ingress Protection	IP67, IP69K
Light Source	631 nm
Light Source	Red
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Output Configuration	NPN
Response Time	500 µs
Sensing Distance [Max]	118.11 in
Sensing Distance [Max]	3 m
Sensing Distance [Min]	100 mm
Sensing Distance [Min]	3.937 "
Sensing Method	Retroreflective
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

HL18G Series

Part	Response Time	Connection Method	Sensing Method	Output Configuration	Sensing Distance [Min]	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Ingress Protection	Light Source	Light Source	Operating Temperature [Max]	Operating Temperature [Min]	Cable Length	Cable Length
SICK, Inc. 1085125	500 µs	Cable with Connector	Retroreflective	NPN	100 mm	3.937 "	118.11 in	3 m	30 VDC	10 VDC	IP67	631 nm	Red	70 °C	-40 °C
SICK, Inc. HL18G-V1G3BL	500 µs	Cable	Retroreflective	PNP	100 mm	3.937 "	118.11 in	3 m	30 VDC	10 VDC	IP67	631 nm	Red	70 °C	-40 °C	78.74 in	2 m
SICK, Inc. 1084991	500 µs	Cable with Connector	Retroreflective	PNP	100 mm	3.937 "	118.11 in	3 m	30 VDC	10 VDC	IP67	631 nm	Red	70 °C	-40 °C	5.906 in	150 mm
SICK, Inc. 1074764	500 µs	Cable	Retroreflective	NPN	100 mm	3.937 "	118.11 in	3 m	30 VDC	10 VDC	IP67 IP69K	631 nm	Red	70 °C	-40 °C	78.74 in	2 m
SICK, Inc. 1084976	500 µs	Cable with Connector	Retroreflective	PNP	100 mm	3.937 "	118.11 in	3 m	30 VDC	10 VDC	IP67	631 nm	Red	70 °C	-40 °C	5.906 in	150 mm
SICK, Inc. 1071953	500 µs	Connector M8	Retroreflective	PNP	100 mm	3.937 "	118.11 in	3 m	30 VDC	10 VDC	IP67	631 nm	Red	70 °C	-40 °C
SICK, Inc. 1082073	500 µs	Cable	Retroreflective	NPN/PNP	100 mm	3.937 "	118.11 in	3 m	30 VDC	10 VDC	IP67 IP69K	631 nm	Red	70 °C	-40 °C	78.74 in	2 m
SICK, Inc. HL18G-N4A3BL	500 µs	Connector M12	Retroreflective	NPN	100 mm	3.937 "	118.11 in	3 m	30 VDC	10 VDC	IP67	631 nm	Red	70 °C	-40 °C
SICK, Inc. 1085238	500 µs	Connector M8	Retroreflective	NPN	100 mm	3.937 "	118.11 in	3 m	30 VDC	10 VDC	IP67	631 nm	Red	70 °C	-40 °C
SICK, Inc. HL18G-P4A3BM	500 µs	Connector M12	Retroreflective	PNP	100 mm	3.937 "	118.11 in	3 m	30 VDC	10 VDC	IP67	631 nm	Red	70 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 195.44

Description

General part information

HL18G Series

Retroreflective Optical Sensor 3.937" ~ 118.110" (100mm ~ 3m) NPN

Documents

Technical documentation and resources

No documents available
