GC1001-G

Active

DAVIES MOLDING

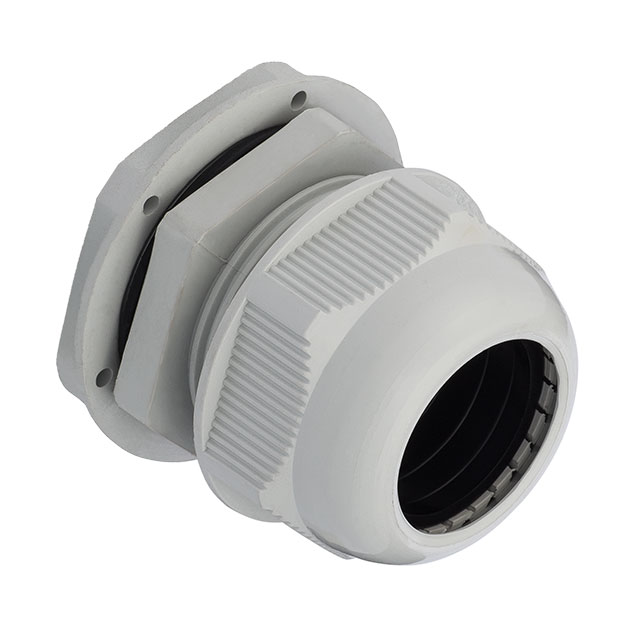

CABLE GLAND 25-32MM M50 POLYAMID

Search across all available documentation for this part.

Active

DAVIES MOLDING

CABLE GLAND 25-32MM M50 POLYAMID

Technical Specifications

Parameters and characteristics for this part

Specification	GC1001-G

Color	Light Gray
Includes	Locknut, Seal, O-Ring
Ingress Protection	IP67 - Dust Tight, Waterproof
Material	Polyamide (PA), Nylon
Outside Cable Diameter (Max) [Max]	32 mm
Outside Cable Diameter (Max) [Max]	1.26 in
Outside Cable Diameter (Min) [Min] [diameter]	25 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.984 in
Panel Hole Size	2.008 in
Panel Hole Size	51 mm
Thread Length	0.492 in
Thread Length	12.5 mm
Thread Size	M50x1.5
Type	Cable Gland

Part	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Panel Hole Size	Panel Hole Size	Thread Length	Thread Length	Includes	Material	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Type	Ingress Protection	Color	Thread Size
DAVIES MOLDING GC1001-G	32 mm	1.26 in	2.008 in	51 mm	0.492 in	12.5 mm	Locknut O-Ring Seal	Polyamide (PA) Nylon	25 mm	0.984 in	Cable Gland	IP67 - Dust Tight Waterproof	Light Gray	M50x1.5

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA), Nylon M50x1.5 Light Gray
