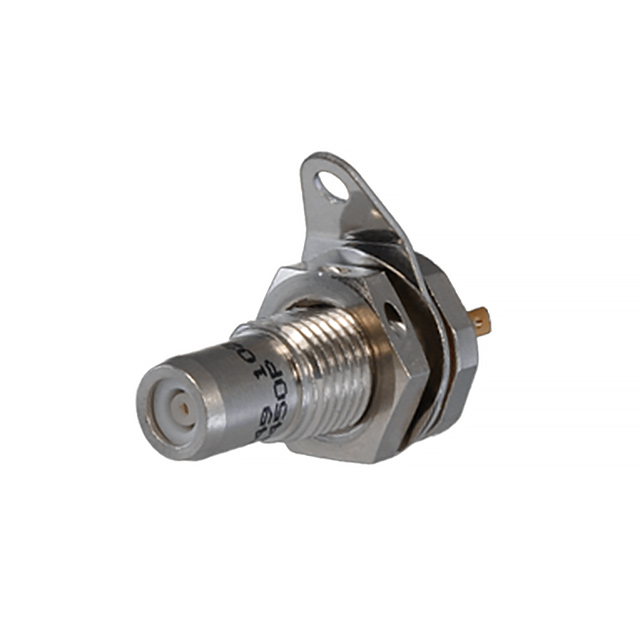

BJ3450P

Active

Cinch Connectivity Solutions Trompeter

CONN 1553 TWIN JACK STR SOLDER

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN 1553 TWIN JACK STR SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	BJ3450P

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	1553, Twinaxial
Connector Type	Female Socket, Jack, Male Pin (Concentric)
Contact Termination	Solder Cup
Frequency - Max [Max]	2 MHz
Housing Color	Silver
Impedance	Non-Constant
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder Tag
Voltage Rating	900 V

Part	Contact Termination	Connector Style	Shield Termination	Frequency - Max [Max]	Housing Color	Body Material	Includes	Center Contact Plating	Center Contact Material	Number of Ports	Body Finish	Impedance	Mounting Feature	Voltage Rating	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]
Cinch Connectivity Solutions Trompeter BJ3450P	Solder Cup	1553 Twinaxial	Solder Tag	2 MHz	Silver	Brass	1 Connector 1 Lockwasher 1 Nut	Gold	Beryllium Copper	1	Nickel	Non-Constant	Bulkhead - Front Side Nut	900 V	Female Socket Jack Male Pin (Concentric)	125 °C	-65 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1553, Twinaxial Connector Jack, Female Socket, Male Pin (Concentric) Non-Constant Panel Mount Solder Cup
