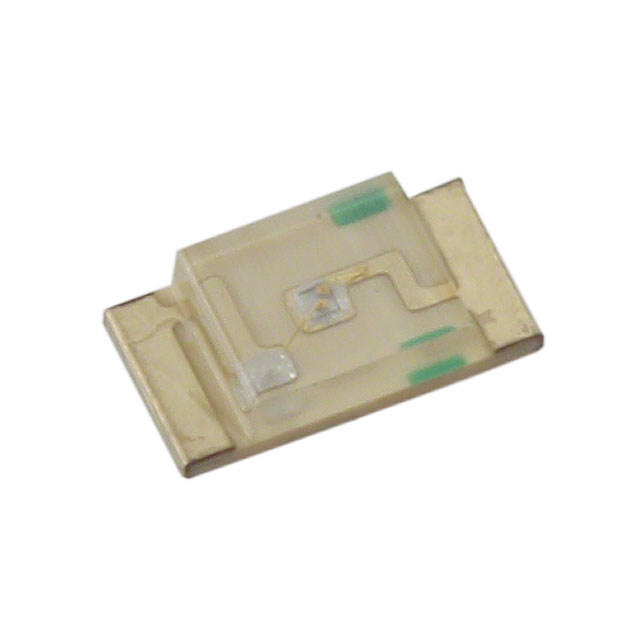

APT3216QBC/D

Active

Kingbright

LED BLUE CLEAR CHIP SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

APT3216QBC/D

Active

Kingbright

LED BLUE CLEAR CHIP SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	APT3216QBC/D

Color	Blue
Configuration	Standard
Current - Test	20 mA
Lens Color	Colorless
Lens Size [x]	2 mm
Lens Size [y]	1.6 mm
Lens Style	Rectangle with Flat Top
Lens Transparency	Clear
Millicandela Rating	100 mcd
Mounting Type	Surface Mount
Package / Case	1206 (3216 Metric)
Size / Dimension [x]	3.2 mm
Size / Dimension [y]	1.6 mm
Supplier Device Package	Chip LED
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	3.3 V
Wavelength - Dominant	465 nm
Wavelength - Peak	460 nm

APT3216 Series

Part	Lens Color	Mounting Type	Configuration	Millicandela Rating	Current - Test	Package / Case	Viewing Angle	Wavelength - Peak	Voltage - Forward (Vf) (Typ)	Wavelength - Dominant	Lens Transparency	Size / Dimension [y]	Size / Dimension [x]	Color	Lens Style	Supplier Device Package	Lens Size [y]	Lens Size [x]	Wavelength - Peak [custom]
Kingbright APT3216SYCK/J3-PRV	Colorless	Surface Mount	Standard	320 mcd	20 mA	1206 (3216 Metric)	120 °	590 nm	2 V	590 nm	Clear	1.6 mm	3.2 mm	Yellow	Rectangle with Flat Top	Chip LED	1.6 mm	2 mm
Kingbright APT3216SECK/J3-PRV	Colorless	Surface Mount	Standard	350 mcd	20 mA	1206 (3216 Metric)	120 °		2.2 V	625 nm	Clear	1.6 mm	3.2 mm	Red	Rectangle with Flat Top	Chip LED	1.6 mm	2 mm	640 nm
Kingbright APT3216QBC/D	Colorless	Surface Mount	Standard	100 mcd	20 mA	1206 (3216 Metric)	120 °	460 nm	3.3 V	465 nm	Clear	1.6 mm	3.2 mm	Blue	Rectangle with Flat Top	Chip LED	1.6 mm	2 mm
Kingbright APT3216SRCPRV	Colorless	Surface Mount	Standard	30 mcd	20 mA	1206 (3216 Metric)	120 °	655 nm	1.85 V	640 nm	Clear	1.6 mm	3.2 mm	Red	Rectangle with Flat Top	Chip LED	1.6 mm	2 mm
Kingbright APT3216MGC	Colorless	Surface Mount	Standard	70 mcd	20 mA	1206 (3216 Metric)	120 °		2.1 V	570 nm	Clear	1.6 mm	3.2 mm	Green	Rectangle with Flat Top	Chip LED	1.6 mm	2 mm
Kingbright APT3216VBC/D	Colorless	Surface Mount	Standard	180 mcd	20 mA	1206 (3216 Metric)	120 °	465 nm	3.3 V	470 nm	Clear	1.6 mm	3.2 mm	Blue	Rectangle with Flat Top	Chip LED	1.6 mm	2 mm
Kingbright APT3216LSECK/J3-PRV	Colorless	Surface Mount	Standard	40 mcd	2 mA	1206 (3216 Metric)	120 °		1.8 V	625 nm	Clear	1.6 mm	3.2 mm	Red	Rectangle with Flat Top	2-SMD	1.6 mm	1.9 mm	640 nm
Kingbright APT3216YC	Colorless	Surface Mount	Standard	8 mcd	20 mA	1206 (3216 Metric)	120 °	590 nm	2.1 V	588 nm	Clear	1.6 mm	3.2 mm	Yellow	Rectangle with Flat Top	Chip LED	1.6 mm	2 mm
Kingbright APT3216SYCK	Colorless	Surface Mount	Standard	150 mcd	20 mA	1206 (3216 Metric)	120 °	590 nm	2 V	590 nm	Clear	1.6 mm	3.2 mm	Yellow	Rectangle with Flat Top	Chip LED	1.6 mm	2 mm
Kingbright APT3216SURCK	Colorless	Surface Mount	Standard	80 mcd	20 mA	1206 (3216 Metric)	120 °	645 nm	1.95 V	630 nm	Clear	1.6 mm	3.2 mm	Red	Rectangle with Flat Top	Chip LED	1.6 mm	2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.45
		10	$ 0.28
		100	$ 0.16
		1000	$ 0.13
	Digi-Reel®	1	$ 0.45
		10	$ 0.28
		100	$ 0.16
		1000	$ 0.13
	Tape & Reel (TR)	2000	$ 0.11
		6000	$ 0.10
		10000	$ 0.10
		50000	$ 0.09
		100000	$ 0.09

Description

General part information

APT3216 Series

Blue 465nm LED Indication - Discrete 3.3V 1206 (3216 Metric)
