17S,BK

Active

Serpac

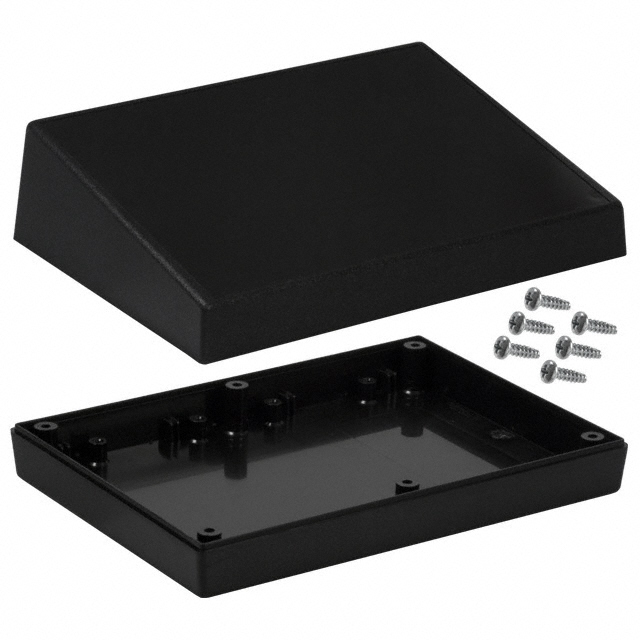

BOX ABS BLACK 6.88"L X 4.88"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS BLACK 6.88"L X 4.88"W

Technical Specifications

Parameters and characteristics for this part

Specification	17S,BK

Area (L x W)	33.6 in²
Area (L x W)	217 cm²
Color	Black
Container Type	Box
Design	Split Sides and Slanted Top
Features	PCB Supports
Height [z]	63.25 mm
Height [z]	2.49 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 4X, 14, 12
Size / Dimension [x]	174.75 mm
Size / Dimension [x]	6.88 in
Size / Dimension [y]	123.95 mm
Size / Dimension [y]	4.88 in
Thickness	2.54 mm
Thickness	0.1 in
Weight	0.43 lb
Weight	195.04 g

Part	Features	Thickness	Thickness	Design	Container Type	Height [z]	Height [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Weight	Weight	Material	Area (L x W)	Area (L x W)	Ratings	Material Flammability Rating	Color
Serpac 17S,BK	PCB Supports	2.54 mm	0.1 in	Split Sides and Slanted Top	Box	63.25 mm	2.49 in	123.95 mm	174.75 mm	4.88 in	6.88 in	0.43 lb	195.04 g	Plastic ABS	33.6 in²	217 cm²	12 14 IP40 NEMA 4X	UL94 HB	Black
Serpac 17S,GY	PCB Supports	2.54 mm	0.1 in	Split Sides and Slanted Top	Box	63.25 mm	2.49 in	123.95 mm	174.75 mm	4.88 in	6.88 in	0.43 lb	195.04 g	Plastic ABS	33.6 in²	217 cm²	12 14 IP40 NEMA 4X	UL94 HB	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Black Split Sides and Slanted Top 6.880" L x 4.880" W (174.75mm x 123.95mm) X 2.490" (63.25mm)

Technical documentation and resources

No documents available
