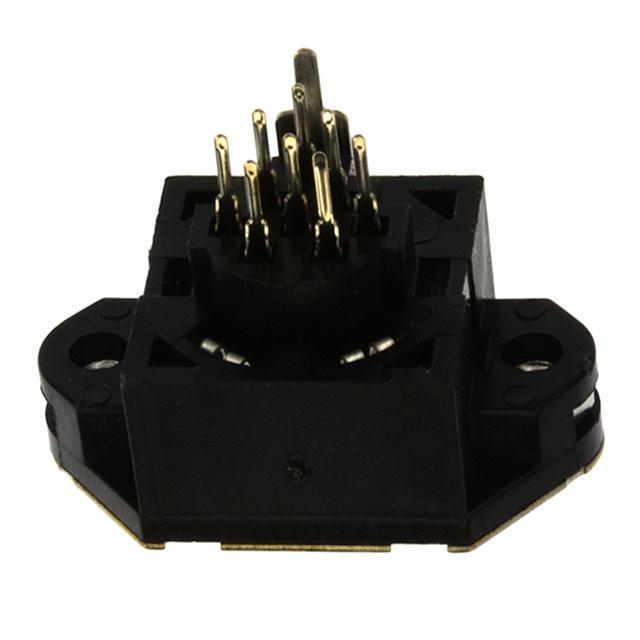

HR212-10R-8SD(73)

Active

Hirose Electric USA, Inc.

STANDARD CIRCULAR CONNECTOR REC 8P VERT TIN BLK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HR212-10R-8SD(73)

Active

Hirose Electric USA, Inc.

STANDARD CIRCULAR CONNECTOR REC 8P VERT TIN BLK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HR212-10R-8SD(73)

Color	Black, Silver
Connector Type	Receptacle, Female Sockets
Contact Finish Thickness - Mating	1 µm
Contact Finish Thickness - Mating	39.4 µin
Contact Material	Phosphor Bronze
Fastening Type	Snap-In
Features	Ground
Insert Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Mounting Type	Through Hole
Number of Positions	8
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-15 °C
Orientation	Keyed
Primary Material	Plastic
Shell Finish	Tin
Shell Material	Polybutylene Terephthalate (PBT)
Shell Size - Insert	10
Shielding	Shielded
Termination	Solder
Voltage Rating	100 VAC, 140 VDC

HR212 Series

Part	Backshell Material, Plating	Color	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Orientation	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Shell Material	Shell Size - Insert	Primary Material	Shell Finish	Contact Material	Mounting Type	Features	Insert Material	Number of Positions	Connector Type	Shielding	Contact Finish - Mating	Termination	Mounting Feature
Hirose Electric USA, Inc. HR212-10LP-8P(71)	Polypropylene (PP)	Black Silver	-15 °C	60 °C	100 VAC 140 VDC	Keyed	UL94 V-0	1 µm	39.4 µin	Snap-In	Zinc Alloy	10	Metal	Nickel	Copper Alloy	Free Hanging (In-Line) Right Angle	Backshell Strain Relief	Polybutylene Terephthalate (PBT)	8	Male Pins Plug	Shielded
Hirose Electric USA, Inc. HR212-10RC-10SDL(72)
Hirose Electric USA, Inc. HR212-10P-8P(73)	Polyvinyl Chloride (PVC)	Black Silver	-15 °C	60 °C	100 VAC 140 VDC	Keyed	UL94 V-0	0.203 Ám	8 Áin	Snap-In	Zinc Alloy	10	Metal	Nickel	Copper Alloy	Free Hanging (In-Line)	Backshell Strain Relief	Polybutylene Terephthalate (PBT)	8	Male Pins Plug	Shielded	Gold
Hirose Electric USA, Inc. HR212-10P-8P(44)		Beige Silver	-15 °C	60 °C	100 VAC 140 VDC	Keyed	UL94 V-0			Snap-In		10				Free Hanging (In-Line)	Backshell Strain Relief		8	Male Pins Plug	Shielded	Gold
Hirose Electric USA, Inc. HR212-10RC-10SDL(74)		Black Silver	-15 °C	60 °C	100 VAC 140 VDC	Keyed	UL94 V-0	0.203 Ám	8 Áin	Snap-In	Polybutylene Terephthalate (PBT)	10	Plastic	Tin	Phosphor Bronze	Through Hole Right Angle	Board Guide Ground	Polybutylene Terephthalate (PBT)	10	Receptacle Female Sockets	Shielded	Gold	Solder
Hirose Electric USA, Inc. HR212-10RC-10SDL(02)
Hirose Electric USA, Inc. HR212-10R-8SD(73)		Black Silver	-15 °C	60 °C	100 VAC 140 VDC	Keyed	UL94 V-0	1 µm	39.4 µin	Snap-In	Polybutylene Terephthalate (PBT)	10	Plastic	Tin	Phosphor Bronze	Through Hole	Ground	Polybutylene Terephthalate (PBT)	8	Receptacle Female Sockets	Shielded		Solder	Flange
Hirose Electric USA, Inc. HR212-10RA-8SDL(71)
Hirose Electric USA, Inc. HR212-10P-8P					100 VAC 140 VDC	Keyed				Snap-In		10				Free Hanging (In-Line)			8	Male Pins Plug	Shielded
Hirose Electric USA, Inc. HR212-10RA-8SDL(02)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.19
		10	$ 5.62
		25	$ 5.32
		50	$ 5.20
		100	$ 4.95
		250	$ 4.33
		500	$ 4.21
		1000	$ 3.59
		2500	$ 3.34

Description

General part information

HR212 Series

8 Position Circular Connector Receptacle, Female Sockets Solder
