857-062-559-212
ActiveEDAC Inc.

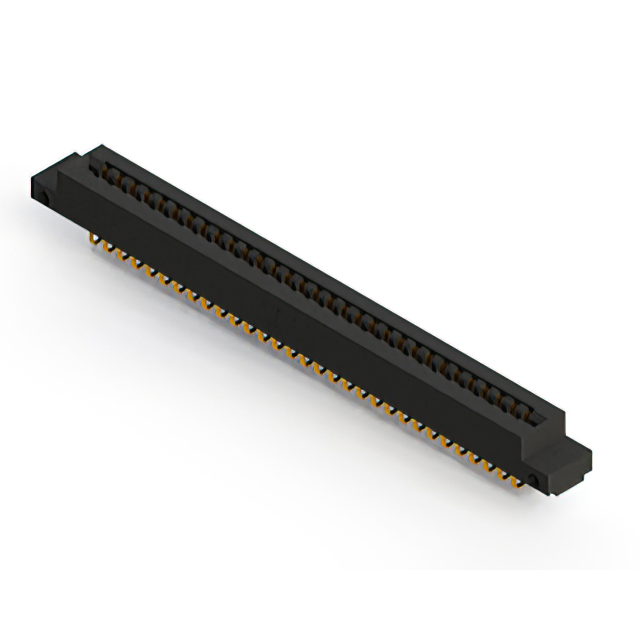

CONN EDGE DUAL FMALE 62POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
857-062-559-212
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 62POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 857-062-559-212 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Side Mount Opening, Unthreaded |
| Flange Feature | 3.25 mm |
| Flange Feature | 0.128 in |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 62 |
| Number of Positions/Bay/Row [custom] | 31 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 2 |
857-062 Series
...
| Part | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Finish | Number of Positions/Bay/Row [custom] | Color | Mounting Type | Contact Type | Number of Rows | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Read Out | Termination Rows | Termination | Material - Insulation | Features | Card Type | Number of Positions | Gender | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Gold | 31 | Black | Board Edge Straddle Mount | Semi Bellows | 2 | Copper Alloy | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Dual | 2 | Solder | Polyphenylene Sulfide (PPS) | Card Extender | Non Specified - Dual Edge | 62 | Female | ||
EDAC Inc. | Flush Mount M3 Threaded Insert Top Opening | Gold | 31 | Black | Through Hole Right Angle | Semi Bellows | 2 | Copper Alloy | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Single | 2 | Solder | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge | 62 | Female | |||||
EDAC Inc. | Side Mount Opening Unthreaded | Gold | 31 | Black | Through Hole | Semi Bellows | 2 | Copper Alloy | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Dual | 2 | Solder | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge | 62 | Female | 3.25 mm | 0.128 in | |||
EDAC Inc. | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Gold | 31 | Black | Through Hole Right Angle | Semi Bellows | 2 | Copper Alloy | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Single | 2 | Solder | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge | 62 | Female | |||
EDAC Inc. | 4-40 Flush Mount Threaded Insert Top Opening | Tin | 31 | Black | Through Hole | Semi Bellows | 2 | Copper Alloy | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Dual | 2 | Solder | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge | 62 | Female | |||||||
EDAC Inc. | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Gold | 31 | Black | Through Hole | Semi Bellows | 2 | Copper Alloy | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Dual | 2 | Solder Eyelet(s) | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge | 62 | Female | |||
EDAC Inc. | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Tin | 31 | Black | Through Hole Right Angle | Semi Bellows | 2 | Copper Alloy | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Single | 2 | Solder | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge | 62 | Female | |||||
EDAC Inc. | Side Mount Opening Unthreaded | Gold | 31 | Black | Through Hole Right Angle | Semi Bellows | 2 | Copper Alloy | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Single | 2 | Solder | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge | 62 | Female | 3.25 mm | 0.128 in | |||
EDAC Inc. | Side Mount Opening Unthreaded | Tin | 31 | Black | Through Hole | Semi Bellows | 2 | Copper Alloy | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Dual | 2 | Solder Eyelet(s) | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge | 62 | Female | 3.25 mm | 0.128 in | |||||
EDAC Inc. | Gold | 31 | Black | Through Hole | Semi Bellows | 2 | Copper Alloy | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Dual | 2 | Solder | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge | 62 | Female |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
857-062 Series
62 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
