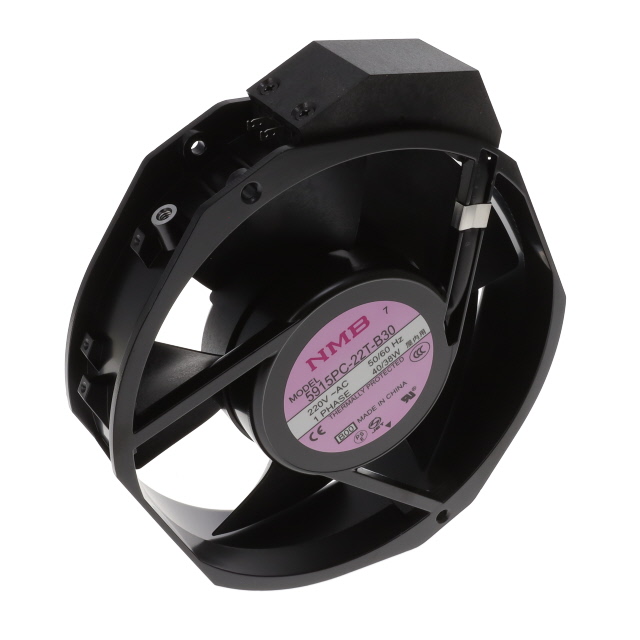

5915PC-22T-B30-B00

Obsolete

NMB TECHNOLOGIES

FAN AXIAL 172X38MM 220VAC TERM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFans & Blowers Catalog Fan Agency Approvals +1

5915PC-22T-B30-B00

Obsolete

NMB TECHNOLOGIES

FAN AXIAL 172X38MM 220VAC TERM

Deep-Dive with AI

DocumentsFans & Blowers Catalog Fan Agency Approvals +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5915PC-22T-B30-B00

Air Flow	212 CFM
Air Flow	5.94 m³/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	0.18 A
Fan Type	Tubeaxial
Lifetime @ Temp.	50000 Hrs
Material - Blade	Polycarbonate (PC), Fiberglass Reinforced
Material - Frame	Aluminum
Noise	56 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	38 W
RPM	3200 RPM
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	172 mm
Size / Dimension [z]	150 mm
Static Pressure	215.6 Pa
Static Pressure	0.865 in H2O
Termination	2 Terminals
Voltage - Rated	220 VAC
Weight	816.5 g
Weight	1.8 lbs
Width [y]	38 mm

5915PC Series

Part	Lifetime @ Temp.	Material - Blade	Width [y]	Fan Type	Voltage - Rated	Bearing Type	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	Weight	Weight	Power (Watts)	Current Rating (Amps)	RPM	Static Pressure	Static Pressure	Termination	Material - Frame	Air Flow	Air Flow	Approval Agency	Noise	Weight	Air Flow	Ingress Protection
NMB TECHNOLOGIES 5915PC-12T-B30-S00	50000 Hrs	Fiberglass Reinforced Polycarbonate (PC)	38 mm	Tubeaxial	115 VAC	Ball	70 °C	70 °C	-10 °C	-10 °C	Rectangular/Rounded	150 mm	172 mm	907.2 g	2 lbs	38 W	400 mA	3150 RPM	163.2 Pa	0.655 in H2O	2 Terminals	Aluminum	187.1 CFM	5.24 m³/min	CE CSA UL VDE	53 dB
NMB TECHNOLOGIES 5915PC-22T-B30-B00	50000 Hrs	Fiberglass Reinforced Polycarbonate (PC)	38 mm	Tubeaxial	220 VAC	Ball	70 °C	70 °C	-10 °C	-10 °C	Rectangular/Rounded	150 mm	172 mm	1.8 lbs		38 W	0.18 A	3200 RPM	215.6 Pa	0.865 in H2O	2 Terminals	Aluminum	212 CFM	5.94 m³/min	CE CSA UL VDE	56 dB	816.5 g
NMB TECHNOLOGIES 5915PC-12T-B10-A00	50000 Hrs	Fiberglass Reinforced Polycarbonate (PC)	38 mm	Tubeaxial	115 VAC	Ball	70 °C	70 °C	-10 °C	-10 °C	Rectangular/Rounded	150 mm	172 mm	1.8 lbs		18 W	0.19 A	1650 RPM	60.7 Pa	0.243 in H2O	2 Terminals	Aluminum	102.3 CFM	2.86 m³/min	CE CSA UL VDE	38 dB(A)	816.5 g
NMB TECHNOLOGIES 5915PC-20T-B30-BM0	50000 Hrs	Fiberglass Reinforced Polycarbonate (PC)	38 mm	Tubeaxial	200 VAC	Ball	70 °C	70 °C	-10 °C	-10 °C	Rectangular/Rounded	150 mm	172 mm	861.8 g	1.9 lbs	33 W	0.21 A	3200 RPM	215 Pa	0.863 in H2O	2 Terminals	Aluminum	211.8 CFM	5.93 m³/min	CE CSA UL VDE	56 dB
NMB TECHNOLOGIES 5915PC-23T-B30-SM0	50000 Hrs	Fiberglass Reinforced Polycarbonate (PC)	38 mm	Tubeaxial	230 VAC	Ball	70 °C	70 °C	-10 °C	-10 °C	Rectangular/Rounded	150 mm	172 mm	952.5 g	2.1 lb	40 W	0.2 A	3150 RPM	163.2 Pa	0.655 in H2O	2 Terminals	Aluminum		187.1 CFM	CE CSA UL VDE	53 dB		5.24 mł/min	IP54 - Dust Protected Water Resistant
NMB TECHNOLOGIES 5915PC-22T-B30-BM0	50000 Hrs	Fiberglass Reinforced Polycarbonate (PC)	38 mm	Tubeaxial	220 VAC	Ball	70 °C	70 °C	-10 °C	-10 °C	Rectangular/Rounded	150 mm	172 mm	861.8 g	1.9 lbs	38 W	0.18 A	3200 RPM	215 Pa	0.863 in H2O	2 Terminals	Aluminum	211.8 CFM	5.93 m³/min	CE CSA UL VDE	56 dB
NMB TECHNOLOGIES 5915PC-10T-B30-SM0	50000 Hrs	Fiberglass Reinforced Polycarbonate (PC)	38 mm	Tubeaxial	100 VAC	Ball	70 °C	70 °C	-10 °C	-10 °C	Rectangular/Rounded	150 mm	172 mm	861.8 g	1.9 lbs	33 W	0.44 A	3200 RPM	215 Pa	0.863 in H2O	2 Terminals	Aluminum	211.8 CFM	5.93 m³/min	CE CSA UL VDE	56 dB
NMB TECHNOLOGIES 5915PC-23T-B30-A00	50000 Hrs	Fiberglass Reinforced Polycarbonate (PC)	38 mm	Tubeaxial	230 VAC	Ball	70 °C	70 °C	-10 °C	-10 °C	Rectangular/Rounded	150 mm	172 mm	1.8 lbs		35 W	0.19 A	3200 RPM	215.6 Pa	0.865 in H2O	2 Terminals	Aluminum	212 CFM	5.94 m³/min	CE CSA UL VDE	56 dB	816.5 g
NMB TECHNOLOGIES 5915PC-23T-B10-A00	50000 Hrs	Fiberglass Reinforced Polycarbonate (PC)	38 mm	Tubeaxial	230 VAC	Ball	70 °C	70 °C	-10 °C	-10 °C	Rectangular/Rounded	150 mm	172 mm	1.8 lbs		18 W	110 mA	1650 RPM	60.7 Pa	0.243 in H2O	2 Terminals	Aluminum	102.3 CFM	2.86 m³/min	CE CSA UL VDE	38 dB(A)	816.5 g
NMB TECHNOLOGIES 5915PC-24T-B30-AM0	50000 Hrs	Fiberglass Reinforced Polycarbonate (PC)	38 mm	Tubeaxial	240 VAC	Ball	70 °C	70 °C	-10 °C	-10 °C	Rectangular/Rounded	150 mm	172 mm	861.8 g	1.9 lbs	34 W	0.17 A	3200 RPM	215 Pa	0.863 in H2O	2 Terminals	Aluminum	211.8 CFM	5.93 m³/min	CE CSA UL VDE	56 dB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

5915PC Series

Fan Tubeaxial 220VAC Rectangular/Rounded - 172mm L x 150mm H Ball 212.0 CFM (5.94m³/min) 2 Terminals
