345-124-555-208

Active

EDAC Inc.

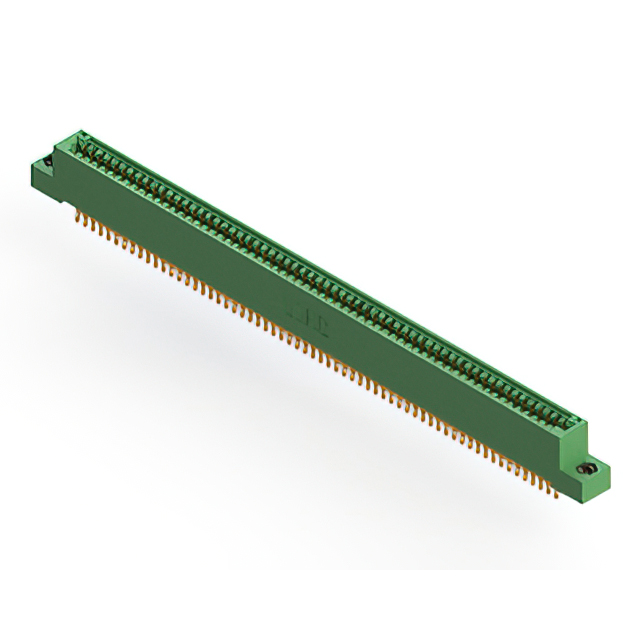

CARD EDGE CONNECTOR, 124 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.1 INCH PITCH, SURFACE MOUNT TERMINAL, #4-40, GREEN INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

345-124-555-208

Active

EDAC Inc.

CARD EDGE CONNECTOR, 124 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.1 INCH PITCH, SURFACE MOUNT TERMINAL, #4-40, GREEN INSULATOR,

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	345-124-555-208

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Extender
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Board Edge, Straddle Mount
Number of Positions	124
Number of Positions/Bay/Row [custom]	62
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	2

345-124 Series

...

Part	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Pitch [x]	Pitch [x]	Material - Insulation	Contact Finish	Card Type	Gender	Contact Finish Thickness	Contact Finish Thickness	Termination	Termination Rows	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Rows	Number of Positions	Number of Positions/Bay/Row [custom]	Features	Read Out	Mounting Type	Contact Material	Color	Contact Type	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Flange Feature
EDAC Inc. 345-124-542-878	-40 °C	105 ░C	4-40 Threaded Insert Top Mount Opening	2.54 mm	0.1 in	Polyester Thermoplastic	Gold	Non Specified - Dual Edge	Female	10 Áin	0.25 Ám	Wire Wrap	2	1.37 mm	0.054 "	1.78 mm	0.07 in	2	124	62	Card Guides	Dual	Through Hole	Copper Alloy	Green	Cantilever
EDAC Inc. 345-124-542-212	-40 °C	105 ░C	Flush Mount Side Opening Unthreaded	2.54 mm	0.1 in	Polyester Thermoplastic	Gold	Non Specified - Dual Edge	Female	10 Áin	0.25 Ám	Wire Wrap	2	1.37 mm	0.054 "	1.78 mm	0.07 in	2	124	62		Dual	Through Hole	Copper Alloy	Green	Cantilever	3.25 mm	0.128 "
EDAC Inc. 345-124-525-507	-40 °C	105 ░C	M3 Threaded Insert Top Mount Opening	2.54 mm	0.1 in	Polyester Thermoplastic	Gold	Non Specified - Dual Edge	Female	10 Áin	0.25 Ám	Solder	2	1.37 mm	0.054 "	1.78 mm	0.07 in	2	124	62		Dual	Through Hole	Copper Alloy	Green	Cantilever
EDAC Inc. 345-124-559-888	-40 °C	105 ░C	4-40 Threaded Insert Top Mount Opening	2.54 mm	0.1 in	Polyester Thermoplastic	Gold	Non Specified - Dual Edge	Female	10 Áin	0.25 Ám	Solder	2	1.37 mm	0.054 "	1.78 mm	0.07 in	2	124	62	Card Guides	Dual	Through Hole Right Angle	Copper Alloy	Green	Cantilever
EDAC Inc. 345-124-558-558	-40 °C	105 ░C	4-40 Threaded Insert Top Mount Opening	2.54 mm	0.1 in	Polyester Thermoplastic	Gold	Non Specified - Dual Edge	Female	10 Áin	0.25 Ám	Wire Wrap	2	1.37 mm	0.054 "	1.78 mm	0.07 in	2	124	62	Card Guides	Dual	Through Hole Right Angle	Copper Alloy	Green	Cantilever
EDAC Inc. 345-124-559-878	-40 °C	105 ░C	4-40 Threaded Insert Top Mount Opening	2.54 mm	0.1 in	Polyester Thermoplastic	Gold	Non Specified - Dual Edge	Female	10 Áin	0.25 Ám	Wire Wrap	2	1.37 mm	0.054 "	1.78 mm	0.07 in	2	124	62	Card Guides	Dual	Through Hole Right Angle	Copper Alloy	Green	Cantilever
EDAC Inc. 345-124-541-802	-40 °C	105 ░C		2.54 mm	0.1 in	Polyester Thermoplastic	Gold	Non Specified - Dual Edge	Female	10 Áin	0.25 Ám	Wire Wrap	2	1.37 mm	0.054 "	1.78 mm	0.07 in	2	124	62		Dual	Through Hole	Copper Alloy	Green	Cantilever			3.25 mm	0.128 in
EDAC Inc. 345-124-555-503	-40 °C	105 ░C	Floating Bobbin Top Mount Opening	2.54 mm	0.1 in	Polyester Thermoplastic	Gold	Non Specified - Dual Edge	Female	10 Áin	0.25 Ám	Solder Eyelet(s)	2	1.37 mm	0.054 "	1.78 mm	0.07 in	2	124	62	Card Extender	Dual	Board Edge Straddle Mount	Copper Alloy	Green	Cantilever	2.95 mm	0.116 in
EDAC Inc. 345-124-555-208	-40 °C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening	2.54 mm	0.1 in	Polyester Thermoplastic	Gold	Non Specified - Dual Edge	Female	10 Áin	0.25 Ám	Solder Eyelet(s)	2	1.37 mm	0.054 "	1.78 mm	0.07 in	2	124	62	Card Extender	Dual	Board Edge Straddle Mount	Copper Alloy	Green	Cantilever
EDAC Inc. 345-124-500-558	-40 °C	105 ░C	4-40 Threaded Insert Top Mount Opening	2.54 mm	0.1 in	Polyester Thermoplastic	Gold	Non Specified - Dual Edge	Female	10 Áin	0.25 Ám	Solder Eyelet(s)	2	1.37 mm	0.054 "	1.78 mm	0.07 in	2	124	62	Card Guides	Dual	Through Hole	Copper Alloy	Green	Cantilever

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 19.95
Newark	Each	1	$ 22.30
		100	$ 14.89
		250	$ 12.67
		500	$ 11.40
		1000	$ 9.01

Description

General part information

345-124 Series

124 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
