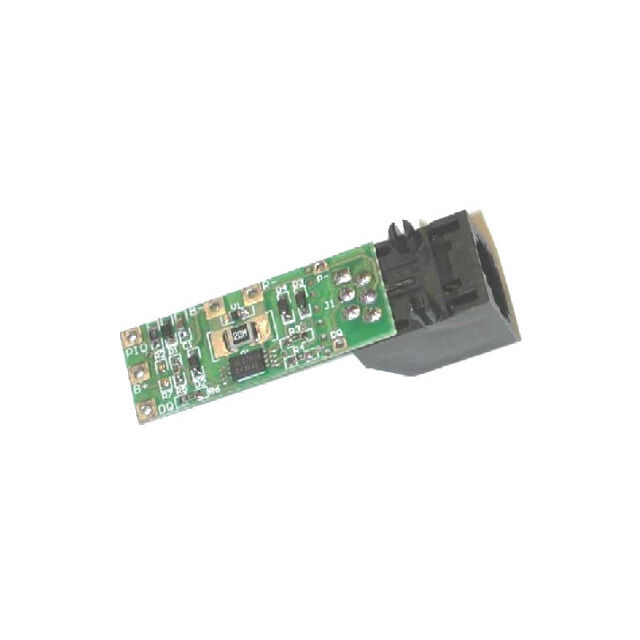

DS2781EVKIT+

Active

Analog Devices Inc./Maxim Integrated

EVAL BOARD FOR DS2781

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

EVAL BOARD FOR DS2781

Technical Specifications

Parameters and characteristics for this part

Part	Contents	Function	Secondary Attributes	Utilized IC / Part	Supplied Contents	Type	Battery Chemistry	Interface	Package / Case	Mounting Type	Number of Cells [Max]	Number of Cells [Min]	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case [custom]	Package / Case [custom]
Analog Devices Inc./Maxim Integrated DS2781EVKIT+	Board(s) Cable(s)	Battery Monitor	USB Interface(s)	DS2781	Board(s) Cable(s)	Power Management
Analog Devices Inc./Maxim Integrated DS2781G+		Battery Monitor					Lithium Ion/Polymer	1-Wire	10-WFDFN Exposed Pad	Surface Mount	2 cells	1	10-TDFN (3x4)	70 °C	-20 °C
Analog Devices Inc./Maxim Integrated DS2781E+		Battery Monitor					Lithium Ion/Polymer	1-Wire	8-TSSOP	Surface Mount	2 cells	1	8-TSSOP	70 °C	-20 °C	0.173 "	4.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

DS2781 - Battery Monitor Power Management Evaluation Board

Technical documentation and resources
