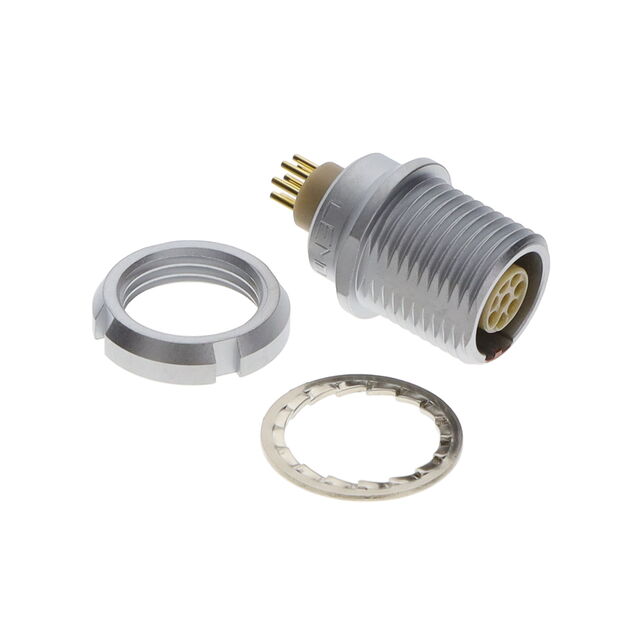

EEA.1B.308.CLN

Active

LEMO

CONN RCPT FMALE 8POS GOLD SOLDER

Search across all available documentation for this part.

Active

LEMO

CONN RCPT FMALE 8POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	EEA.1B.308.CLN

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	59 Áin
Contact Finish Thickness - Mating	1.5 Ám
Contact Material	Bronze
Current Rating (Amps)	5 A
Fastening Type	Push-Pull
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	8
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation	A
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	308
Shielding	Shielded
Termination	Solder

Part	Color	Contact Finish - Mating	Orientation	Insert Material	Mounting Type	Termination	Shell Material	Shell Finish	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Size - Insert	Current Rating (Amps)	Mounting Feature	Shielding	Material Flammability Rating	Connector Type	Ingress Protection	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Number of Positions
LEMO EEA.1B.305.CLN	Silver	Gold	A	Polyetheretherketone (PEEK)	Panel Mount Through Hole	Solder	Brass	Chrome	Push-Pull	59 Áin	1.5 Ám	305	9 A	Bulkhead - Front Side Nut	Shielded	UL94 V-0	Receptacle Female Sockets	IP50	Metal	-55 °C	250 °C	Bronze
LEMO EEA.1B.308.CLN	Silver	Gold	A	Polyetheretherketone (PEEK)	Panel Mount Through Hole	Solder	Brass	Chrome	Push-Pull	59 Áin	1.5 Ám	308	5 A	Bulkhead - Front Side Nut	Shielded	UL94 V-0	Receptacle Female Sockets	IP50	Metal	-55 °C	250 °C	Bronze	8
LEMO EEA.1B.307.CLN	Silver	Gold	A	Polyetheretherketone (PEEK)	Panel Mount Through Hole	Solder	Brass	Chrome	Push-Pull	59 Áin	1.5 Ám	307	7 A	Bulkhead - Front Side Nut	Shielded	UL94 V-0	Receptacle Female Sockets	IP50	Metal	-55 °C	250 °C	Bronze	7

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Circular Connector Receptacle, Female Sockets Solder
