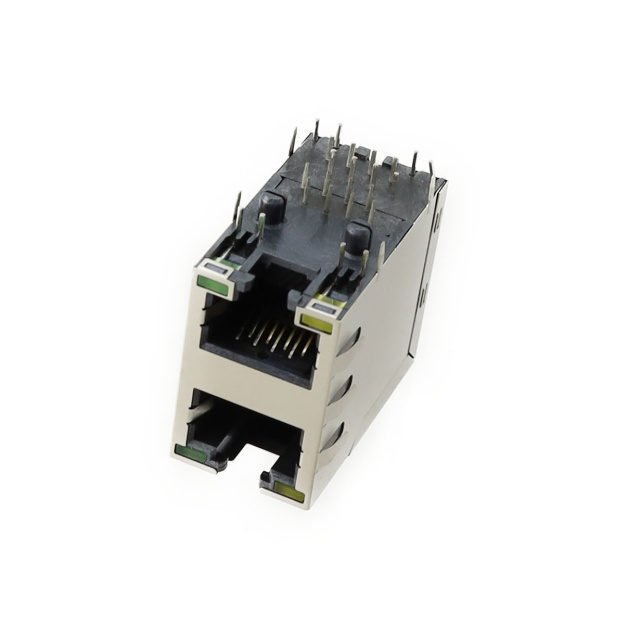

RJE1R288335413

Active

Amphenol ICC (Commercial Products)

8P8C, CAT6, 2X1 STACKED, SHIELD,

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

8P8C, CAT6, 2X1 STACKED, SHIELD,

Technical Specifications

Parameters and characteristics for this part

Specification	RJE1R288335413

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Housing Material	Thermoplastic
LED Color	Yellow - Green
Mounting Type	Through Hole
Number of Ports	2
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	90 °
Ratings	Cat6
Shielding	Shielded, EMI Finger
Tab Direction	Up and Down
Termination	Solder

Part	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Ratings	Number of Ports	Tab Direction	Contact Finish Thickness	Contact Finish Thickness	Termination	Orientation	Housing Material	Contact Finish	Contact Material	LED Color	Mounting Type	Number of Positions/Contacts	Shielding	Connector Type
Amphenol ICC (Commercial Products) RJE1R288335403	2	85 °C	-40 °C	Cat6	2	Up and Down	50 µin	1.27 µm	Solder	90 °	Thermoplastic	Gold	Phosphor Bronze	Does Not Contain LED	Through Hole	8p8c (RJ45 Ethernet)	Shielded EMI Finger	Jack
Amphenol ICC (Commercial Products) RJE1R288335413	2	85 °C	-40 °C	Cat6	2	Up and Down	50 µin	1.27 µm	Solder	90 °	Thermoplastic	Gold	Phosphor Bronze	Yellow - Green	Through Hole	8p8c (RJ45 Ethernet)	Shielded EMI Finger	Jack
Amphenol ICC (Commercial Products) RJE1R288225403	2	85 °C	-40 °C	Cat5e	2	Up and Down	50 µin	1.27 µm	Solder	90 °	Thermoplastic	Gold	Phosphor Bronze	Does Not Contain LED	Through Hole	8p8c (RJ45 Ethernet)	Shielded EMI Finger	Jack
Amphenol ICC (Commercial Products) RJE1R288325413	2	85 °C	-40 °C	Cat5e Cat6	2	Up and Down	50 µin	1.27 µm	Solder	90 °	Thermoplastic	Gold	Phosphor Bronze	Yellow - Green	Through Hole	8p8c (RJ45 Ethernet)	Shielded EMI Finger	Jack
Amphenol ICC (Commercial Products) RJE1R288225413	2	85 °C	-40 °C	Cat5e	2	Up and Down	50 µin	1.27 µm	Solder	90 °	Thermoplastic	Gold	Phosphor Bronze	Yellow - Green	Through Hole	8p8c (RJ45 Ethernet)	Shielded EMI Finger	Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded, EMI Finger Cat6
