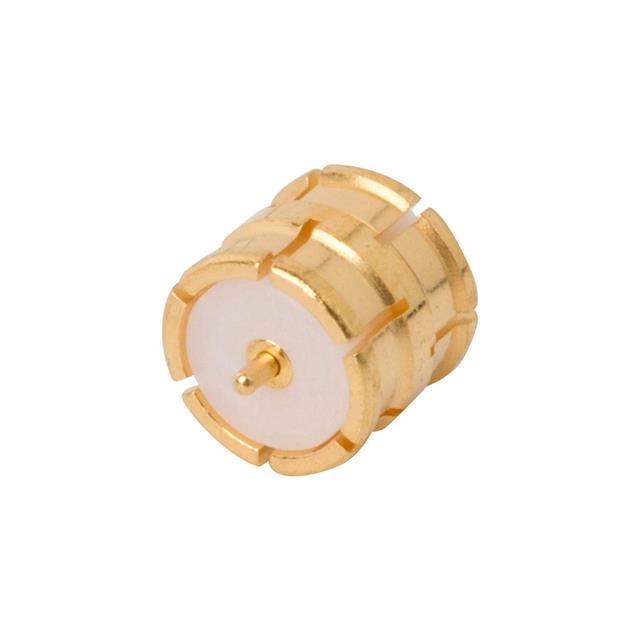

1180-4009

Active

Amphenol SV Microwave

3MM FEMALE TO FEMALE BULLET

Search across all available documentation for this part.

Active

Amphenol SV Microwave

3MM FEMALE TO FEMALE BULLET

Technical Specifications

Parameters and characteristics for this part

Specification	1180-4009

Adapter Series [Max]	3 mm
Adapter Series [Min]	3 mm
Adapter Type	Plug to Plug
Body Finish	Gold
Body Material	Beryllium Copper
Center Contact Material	Brass
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Same Series
Convert From (Adapter End)	Male Pin, 3mm Plug
Convert To (Adapter End)	3mm Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Body Material	Body Finish	Convert To (Adapter End)	Center Gender	Adapter Type	Dielectric Material	Convert From (Adapter End)	Adapter Series [Max]	Adapter Series [Min]	Fastening Type	Center Contact Plating	Center Contact Material	Mounting Type	Conversion Type	Style
Amphenol SV Microwave 1180-4009	-65 ░C	165 °C	50 Ohms	Beryllium Copper	Gold	3mm Plug Male Pin	Male to Male	Plug to Plug	Polytetrafluoroethylene (PTFE)	3mm Plug Male Pin	3 mm	3 mm	Snap-On	Gold	Brass	Free Hanging (In-Line)	Same Series	Straight

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector 3mm Plug, Male Pin To 3mm Plug, Male Pin 50 Ohms
