342-044-541-201
ActiveEDAC Inc.

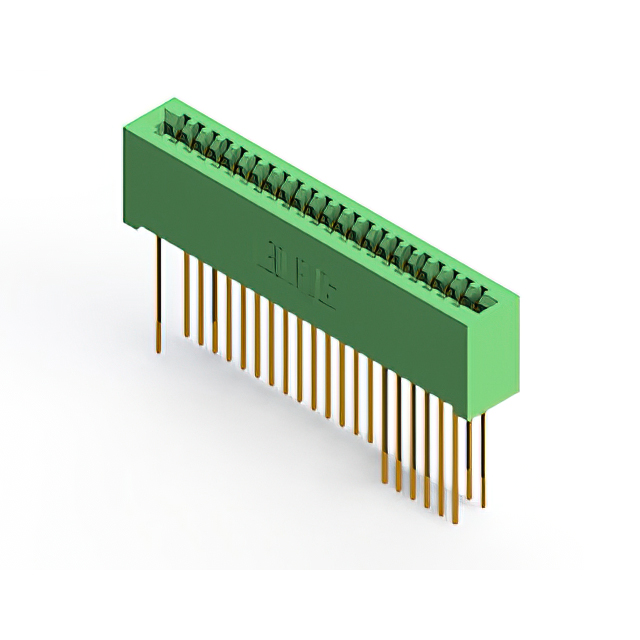

CONN EDGE DUAL FMALE 44POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
342-044-541-201
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 44POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 342-044-541-201 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 44 |
| Number of Positions/Bay/Row [custom] | 22 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
342-044 Series
...
| Part | Color | Mounting Type | Card Type | Termination | Number of Positions | Flange Feature | Contact Finish | Contact Material | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Pitch [x] | Pitch [x] | Gender | Number of Positions/Bay/Row [custom] | Termination Rows | Read Out | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Number of Rows | Material - Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Green | Through Hole Right Angle | Non Specified - Dual Edge | Solder Wire Wrap | 44 | Flush Mount M3 Threaded Insert Top Opening | Gold | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Female | 22 | 2 | Dual | 10 Áin | 0.25 Ám | Cantilever | 2 | Polyester Thermoplastic | -40 °C | 105 ░C | |||
EDAC Inc. | Green | Through Hole | Non Specified - Single Edge | Wire Wrap | 44 | Flush Mount Top Opening Unthreaded | Gold | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Female | 44 | 1 | Single | 10 Áin | 0.25 Ám | Cantilever | 1 | Polyester Thermoplastic | -40 °C | 105 ░C | 3.96 mm | 0.156 in | |
EDAC Inc. | Green | Board Edge Straddle Mount | Non Specified - Dual Edge | Solder Eyelet(s) | 44 | Gold | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Female | 22 | 2 | Dual | 10 Áin | 0.25 Ám | Cantilever | 2 | Polyester Thermoplastic | -40 °C | 105 ░C | Card Extender | |||
EDAC Inc. | Green | Through Hole | Non Specified - Dual Edge | Solder | 44 | 4-40 Flush Mount Threaded Insert Top Opening | Gold | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Female | 22 | 2 | Dual | 10 Áin | 0.25 Ám | Cantilever | 2 | Polyester Thermoplastic | -40 °C | 105 ░C | |||
EDAC Inc. | Green | Through Hole Right Angle | Non Specified - Dual Edge | Solder Wire Wrap | 44 | 4-40 Flush Mount Threaded Insert Top Opening | Gold | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Female | 22 | 2 | Dual | 10 Áin | 0.25 Ám | Cantilever | 2 | Polyester Thermoplastic | -40 °C | 105 ░C | |||
EDAC Inc. | Green | Through Hole | Non Specified - Single Edge | Solder | 44 | Gold | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Female | 44 | 1 | Single | 10 Áin | 0.25 Ám | Cantilever | 1 | Polyester Thermoplastic | -40 °C | 105 ░C | ||||
EDAC Inc. | Green | Through Hole | Non Specified - Dual Edge | Solder Eyelet(s) | 44 | Flush Mount Top Opening Unthreaded | Gold | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Female | 22 | 2 | Dual | 10 Áin | 0.25 Ám | Cantilever | 2 | Polyester Thermoplastic | -40 °C | 105 ░C | 3.25 mm | 0.128 " | |
EDAC Inc. | Green | Through Hole | Non Specified - Dual Edge | Wire Wrap | 44 | Gold | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Female | 22 | 2 | Dual | 10 Áin | 0.25 Ám | Cantilever | 2 | Polyester Thermoplastic | -40 °C | 105 ░C | ||||
EDAC Inc. | Green | Through Hole | Non Specified - Dual Edge | Wire Wrap | 44 | Gold | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Female | 22 | 2 | Dual | 10 Áin | 0.25 Ám | Cantilever | 2 | Polyester Thermoplastic | -40 °C | 105 ░C | ||||
EDAC Inc. | Green | Through Hole | Non Specified - Single Edge | Solder | 44 | Flush Mount Top Opening Unthreaded | Gold | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Female | 44 | 1 | Single | 10 Áin | 0.25 Ám | Cantilever | 1 | Polyester Thermoplastic | -40 °C | 105 ░C | 3.96 mm | 0.156 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 11.14 | |
Description
General part information
342-044 Series
44 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
