SFT1202-TL-E

Obsolete

ON Semiconductor

TRANS NPN 150V 2A TP-FA

Search across all available documentation for this part.

Obsolete

ON Semiconductor

TRANS NPN 150V 2A TP-FA

Technical Specifications

Parameters and characteristics for this part

Specification	SFT1202-TL-E

Current - Collector (Ic) (Max) [Max]	2 A
Current - Collector Cutoff (Max) [Max]	1 µA
DC Current Gain (hFE) (Min) @ Ic, Vce	200 hFE
Frequency - Transition	140 MHz
Mounting Type	Surface Mount
Operating Temperature	150 °C

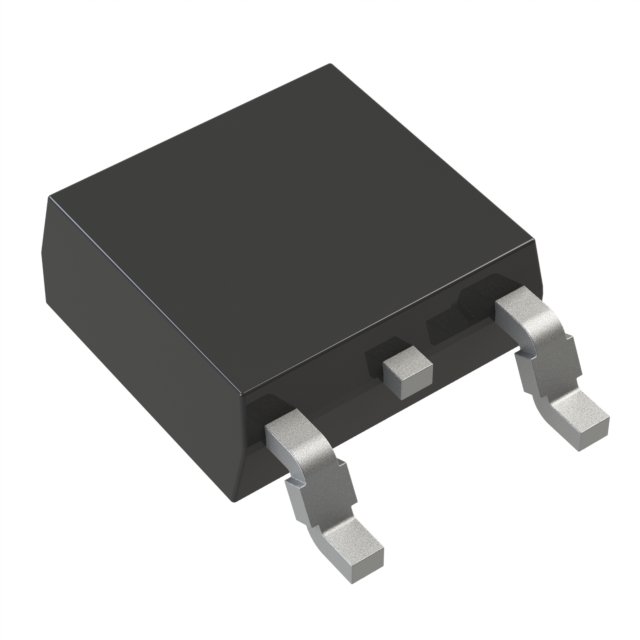

Package / Case	SC-63, DPAK (2 Leads + Tab), TO-252-3
Power - Max [Max]	1 W
Supplier Device Package	TP-FA
Transistor Type	NPN
Vce Saturation (Max) @ Ib, Ic [Max]	165 mV
Voltage - Collector Emitter Breakdown (Max)	150 V

Part	DC Current Gain (hFE) (Min) @ Ic, Vce	Current - Collector (Ic) (Max) [Max]	Power - Max [Max]	Voltage - Collector Emitter Breakdown (Max)	Frequency - Transition	Package / Case	Vce Saturation (Max) @ Ib, Ic [Max]	Transistor Type	Mounting Type	Operating Temperature	Supplier Device Package	Current - Collector Cutoff (Max) [Max]
ON Semiconductor SFT1202-TL-E	200 hFE	2 A	1 W	150 V	140 MHz	DPAK (2 Leads + Tab) SC-63 TO-252-3	165 mV	NPN	Surface Mount	150 °C	TP-FA	1 µA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bipolar (BJT) Transistor NPN 150 V 2 A 140MHz 1 W Surface Mount TP-FA

Technical documentation and resources

No documents available
