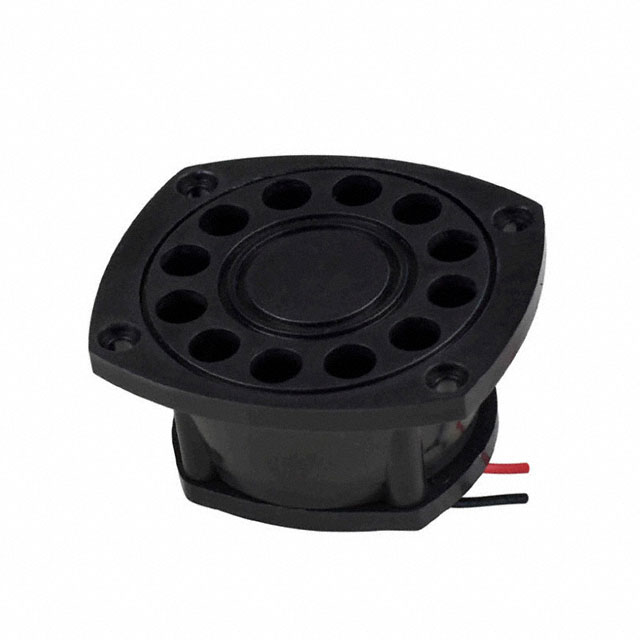

CPT-5828-108L170

Active

CUI Devices

BUZZER PIEZO 85V 58.5X52.8 FLANG

Search across all available documentation for this part.

Active

CUI Devices

BUZZER PIEZO 85V 58.5X52.8 FLANG

Technical Specifications

Parameters and characteristics for this part

Specification	CPT-5828-108L170

Current - Supply	90 mA
Driver Circuitry	Externally Driven, Transducer
Frequency	2.7 kHz
Height - Seated (Max) [Max] [z]	28.8 mm
Height - Seated (Max) [Max] [z]	1.134 "
Input Type	Peak-Peak Signal
Mounting Type	Panel Mount, Flange
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Port Location	Top
Size / Dimension [x]	2.303 in
Size / Dimension [x]	58.5 mm
Size / Dimension [y]	2.079 in
Size / Dimension [y]	52.8 mm
Sound Pressure Level (SPL)	103 dB
Technology	Piezo
Termination	Wire Leads
Voltage - Rated	85 V
Voltage Range [Max]	85 V
Voltage Range [Min]	3 V

Part	Technology	Sound Pressure Level (SPL)	Frequency	Port Location	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Current - Supply	Voltage - Rated	Mounting Type	Voltage Range [Max]	Voltage Range [Min]	Termination	Input Type	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Driver Circuitry
CUI Devices CPT-5828-108L170	Piezo	103 dB	2.7 kHz	Top	2.079 in	2.303 in	58.5 mm	52.8 mm	90 mA	85 V	Flange Panel Mount	85 V	3 V	Wire Leads	Peak-Peak Signal	-20 C	70 °C	28.8 mm	1.134 "	Externally Driven Transducer

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Buzzers Transducer, Externally Driven Piezo 85 V 90mA 2.7kHz 103dB @ 85V, 30cm Panel Mount, Flange Wire Leads
