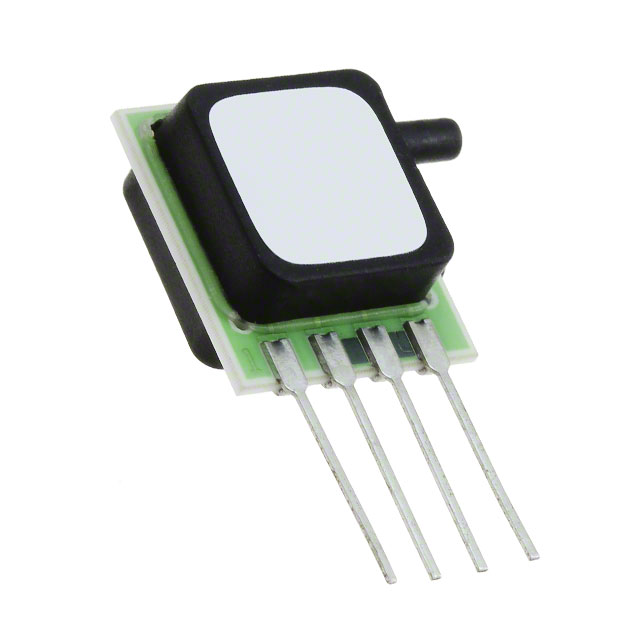

MLV-015A-E1BS-N
ActiveAmphenol All Sensors Corporation
SENSOR 15PSIA 0.09" .0375V 4SIP
Deep-Dive with AI
Search across all available documentation for this part.
MLV-015A-E1BS-N
ActiveAmphenol All Sensors Corporation
SENSOR 15PSIA 0.09" .0375V 4SIP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MLV-015A-E1BS-N |
|---|---|
| Accuracy | 0.5 % |
| Applications | Board Mount |
| Features | Temperature Compensated |
| Maximum Pressure [Max] | 60 PSI |
| Maximum Pressure [Max] | 413.69 kPa |
| Mounting Type | Through Hole |
| Operating Pressure [custom] | 15 PSI |
| Operating Pressure [custom] | 103.42 kPa |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Output | 5V |
| Output [Max] | 37.5 mV |
| Output [Min] | 0 mV |
| Output Type | Wheatstone Bridge |
| Package / Case | 4-SIP, Dual Ports, Same Side |
| Port Size | Dual, Tube, Male |
| Port Size | 2.24 mm |
| Port Size | 0.09 " |
| Port Style | Barbed |
| Supplier Device Package | 4-SIP |
| Termination Style | PC Pin |
| Voltage - Supply | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 44.23 | |
Description
General part information
MLV-015A Series
Pressure Sensor 15PSI (103.42kPa) Absolute Male - 0.09" (2.24mm) Tube, Dual 0 mV ~ 37.5 mV (5V) 4-SIP, Dual Ports, Same Side
