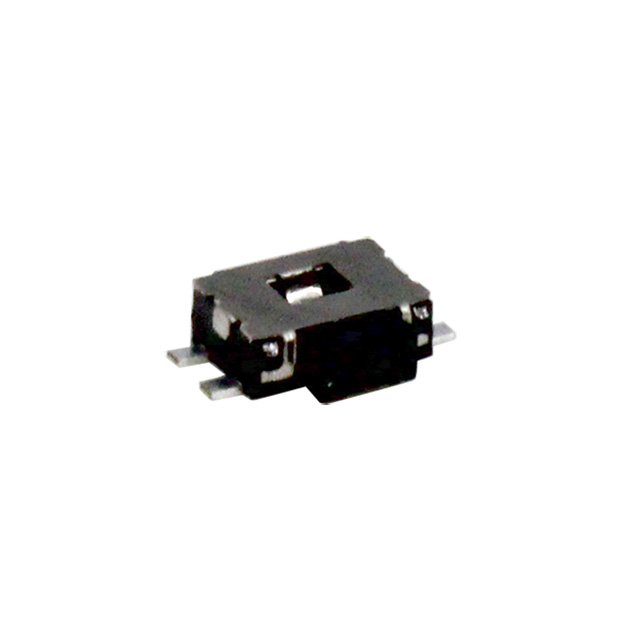

CS1207SF160

Active

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 50V

Search across all available documentation for this part.

Active

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 50V

Technical Specifications

Parameters and characteristics for this part

Specification	CS1207SF160

Actuator Length, Right Angle [x]	1.6 mm
Actuator Material	Polyamide (PA6T), Nylon 6T
Actuator Orientation	Side Actuated
Actuator Type	Rectangular Button
Circuit	SPST-NO
Contact Rating @ Voltage	50 VDC, 0.05 A
Illumination	Non-Illuminated
Mounting Type	Surface Mount, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	6 mm
Outline [y]	3.5 mm
Switch Function	Off-Mom
Switch Travel [custom]	0.3 mm
Termination Style	Gull Wing

Part	Circuit	Outline [y]	Outline [x]	Switch Function	Mounting Type	Termination Style	Actuator Material	Actuator Orientation	Contact Rating @ Voltage	Actuator Type	Actuator Length, Right Angle [x]	Illumination	Switch Travel [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Force
CIT Relay and Switch CS1207SF160	SPST-NO	3.5 mm	6 mm	Off-Mom	Surface Mount Right Angle	Gull Wing	Polyamide (PA6T) Nylon 6T	Side Actuated	0.05 A 50 VDC	Rectangular Button	1.6 mm	Non-Illuminated	0.3 mm	85 °C	-40 °C
CIT Relay and Switch CS1207SMF160	SPST-NO	3.5 mm	6 mm	Off-Mom	Surface Mount Right Angle	Gull Wing	Polyamide (PA6T) Nylon 6T	Side Actuated	0.05 A 50 VDC	Rectangular Button	1.6 mm	Non-Illuminated	0.3 mm	85 °C	-40 °C
CIT Relay and Switch CS1207SF250	SPST-NO	3.5 mm	4.7 mm	Off-Mom	Surface Mount Right Angle	Gull Wing	Nylon 4/6 Polyamide (PA46)	Side Actuated	0.05 A 50 VDC	Rectangular Button	4.5 mm	Non-Illuminated	0.3 mm	85 °C	-40 °C	0.25 kgf

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle
