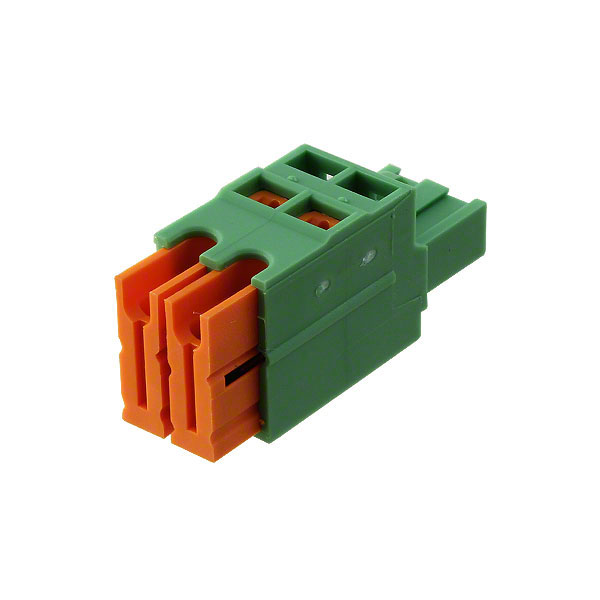

1883255

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 2 POS 5.08MM PITCH PLUG 20-18 AWG IDC

Search across all available documentation for this part.

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 2 POS 5.08MM PITCH PLUG 20-18 AWG IDC

Technical Specifications

Parameters and characteristics for this part

Specification	1883255

Color	Green
Contact Mating Finish	Tin
Current - IEC	10 A
Current - UL	10 A
Housing Material	Polyamide (PA), Nylon
Insulation Height	0.591 in
Insulation Height	15 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	2
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level	2
Termination Style	IDC
Type	Plug, Female Sockets
Voltage - IEC	1 kV
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	22 AWG
Wire Gauge or Range - AWG [Min]	18 AWG
Wire Gauge or Range - mm˛ [Max]	1 mm˛
Wire Gauge or Range - mm˛ [Min]	0.5 mm˛

Pluggable Terminal Blocks 14 Pos 5.08mm pitch Plug 20-18 AWG IDC

Part	Number of Levels	Contact Mating Finish	Material Flammability Rating	Positions Per Level	Type	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Mounting Type	Voltage - UL	Color	Current - UL	Pitch [x]	Pitch [x]	Current - IEC	Termination Style	Number of Positions	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Housing Material	Voltage - IEC	Insulation Height	Insulation Height	Features	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]
Phoenix Contact 1718096	1	Tin	UL94 V-0	15	Plug Female Sockets	24 AWG	16 AWG	Free Hanging (In-Line)	300 V	Green	10 A	5 mm	0.197 in	12 A	Screwless - IDC	15	0.2 mm˛	1.5 mm˛	Polyamide (PA) Nylon	1 kV	0.772 "	19.6 mm
Phoenix Contact 1883828	1	Tin	UL94 V-0	14	Plug Female Sockets	22 AWG	18 AWG	Free Hanging (In-Line)	300 V	Green	10 A	5.08 mm	0.2 in	10 A	IDC	14	0.5 mm˛	1 mm˛	Polyamide (PA) Nylon	1 kV	0.591 in	15 mm
Phoenix Contact 1883352	1	Tin	UL94 V-0	2	Plug Female Sockets	22 AWG	18 AWG	Free Hanging (In-Line)	300 V	Green	10 A	5.08 mm	0.2 in	10 A	IDC	2			Polyamide (PA) Nylon	1 kV	0.591 in	15 mm	Mating Flange	0.5 mm²	1 mm²
Phoenix Contact 1883831	1	Tin	UL94 V-0	15	Plug Female Sockets	22 AWG	18 AWG	Free Hanging (In-Line)	300 V	Green	10 A	5.08 mm	0.2 in	10 A	IDC	15	0.5 mm˛	1 mm˛	Polyamide (PA) Nylon	1 kV	0.591 in	15 mm
Phoenix Contact 1883255	1	Tin	UL94 V-0	2	Plug Female Sockets	22 AWG	18 AWG	Free Hanging (In-Line)	300 V	Green	10 A	5.08 mm	0.2 in	10 A	IDC	2	0.5 mm˛	1 mm˛	Polyamide (PA) Nylon	1 kV	0.591 in	15 mm
