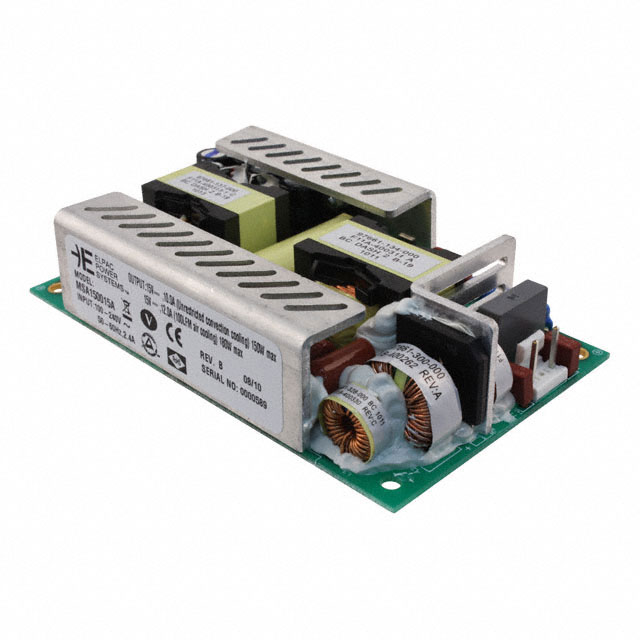

MSA150015A
ActiveInventus Power
AC/DC CONVERTER 15V 150W
Deep-Dive with AI
Search across all available documentation for this part.
MSA150015A
ActiveInventus Power
AC/DC CONVERTER 15V 150W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MSA150015A |
|---|---|
| Applications | Medical |
| Approval Agency | CB, CE, cTUVus |
| Current - Output 1 | 10 A |
| Efficiency | 91 % |
| Features | Universal Input |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 180 W, 150 W |
| Size / Dimension [x] | 5 in |
| Size / Dimension [x] | 127 mm |
| Size / Dimension [y] | 76.2 mm |
| Size / Dimension [y] | 3 " |
| Size / Dimension [z] | 30.9 mm |
| Size / Dimension [z] | 1.22 in |
| Type | Open Frame |
| Voltage - Output 1 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 240 | $ 56.39 | |
Description
General part information
MSA150015 Series
Open Frame AC DC Converters 1 Output 15V 85 ~ 264 VAC Input
Documents
Technical documentation and resources
No documents available
