0150320225

Active

Molex

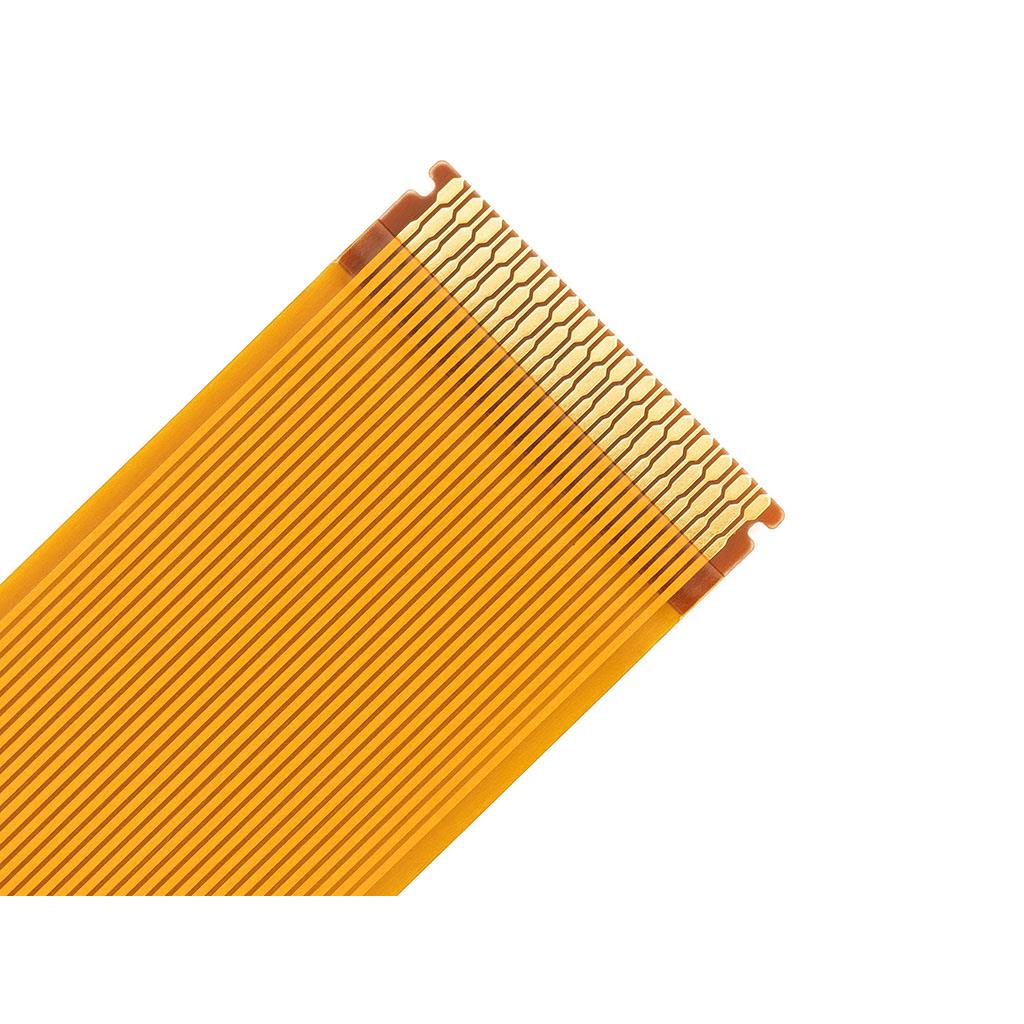

CABLE FFC/FPC 25POS 0.3MM 2"

Search across all available documentation for this part.

Active

Molex

CABLE FFC/FPC 25POS 0.3MM 2"

Technical Specifications

Parameters and characteristics for this part

Specification	0150320225

Cable Type	FPC, FFC
Length	50.8 mm
Length	2 in
Length - Exposed Ends [x]	0.093 in
Length - Exposed Ends [x]	2.36 mm
Number of Conductors	25
Pitch [x]	0.012 in
Pitch [x]	0.3 mm
Termination Style	Backers on Both Sides, Top on Both Sides

Part	Termination Style	Pitch [x]	Pitch [x]	Length	Length	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Number of Conductors	Cable Type	Length [x]
Molex 0150320219	Backers on Both Sides Top on Both Sides	0.012 in	0.3 mm	50.8 mm	2 in	0.093 in	2.36 mm	19	FFC FPC
Molex 0150321019	Backers on Both Sides Top on Both Sides	0.012 in	0.3 mm	254 mm		0.093 in	2.36 mm	19	FFC FPC	10 in
Molex 0150320225	Backers on Both Sides Top on Both Sides	0.012 in	0.3 mm	50.8 mm	2 in	0.093 in	2.36 mm	25	FFC FPC
Molex 0150320251	Backers on Both Sides Top on Both Sides	0.012 in	0.3 mm	50.8 mm	2 in	0.093 in	2.36 mm	51	FFC FPC
Molex 0150320417	Backers on Both Sides Top on Both Sides	0.012 in	0.3 mm	101.6 mm	4 in	0.093 in	2.36 mm	17	FFC FPC
Molex 0150321035	Backers on Both Sides Top on Both Sides	0.012 in	0.3 mm	254 mm		0.093 in	2.36 mm	35	FFC FPC	10 in
Molex 0150320245	Backers on Both Sides Top on Both Sides	0.012 in	0.3 mm	50.8 mm	2 in	0.093 in	2.36 mm	45	FFC FPC
Molex 0150320635	Backers on Both Sides Top on Both Sides	0.012 in	0.3 mm	152.4 mm	6 in	0.093 in	2.36 mm	35	FFC FPC
Molex 0150320643	Backers on Both Sides Top on Both Sides	0.012 in	0.3 mm	152.4 mm	6 in	0.093 in	2.36 mm	43	FFC FPC
Molex 0150320813	Backers on Both Sides Top on Both Sides	0.012 in	0.3 mm	203.2 mm	8 in	0.093 in	2.36 mm	13	FFC FPC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

25 Position FFC, FPC Cable 0.012" (0.30mm) 2.000" (50.80mm)

Technical documentation and resources

No documents available
