09155173101
ActiveHARTING Technology Group

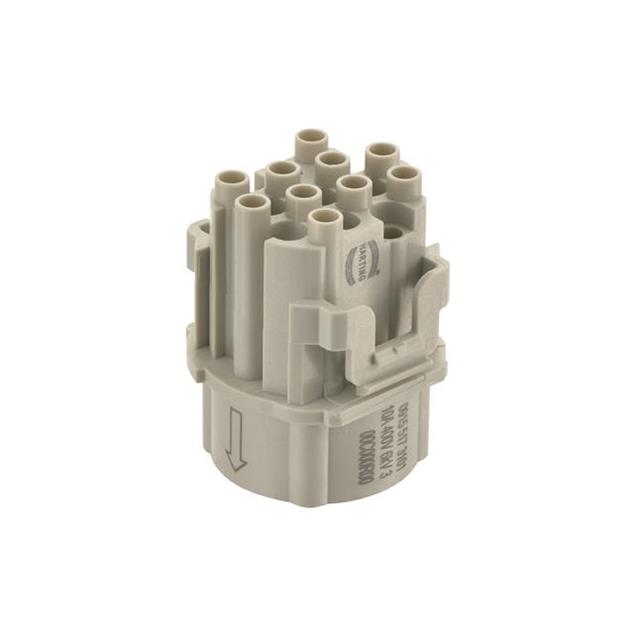

HEAVY DUTY CONNECTOR, HAN F+B SERIES, INSERT, 17 CONTACTS, RECEPTACLE
Deep-Dive with AI
Search across all available documentation for this part.
09155173101
ActiveHARTING Technology Group
HEAVY DUTY CONNECTOR, HAN F+B SERIES, INSERT, 17 CONTACTS, RECEPTACLE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 09155173101 |
|---|---|
| Color | Gray |
| Contact Type | Han® D |
| Current Rating (Amps) | 10 A |
| Gender | Female |
| Housing Material | Polycarbonate (PC) |
| Material Flammability Rating | UL94 V-0 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Termination Style | Crimp |
| Voltage Rating | 400 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 19.70 | |
| 10 | $ 14.33 | |||
| 25 | $ 12.79 | |||
| 50 | $ 11.80 | |||
| 100 | $ 10.93 | |||
| 250 | $ 9.94 | |||
| 500 | $ 9.30 | |||
| 1000 | $ 8.74 | |||
Description
General part information
09155173 Series
Female Insert Gray 17 Position Crimp
Documents
Technical documentation and resources
