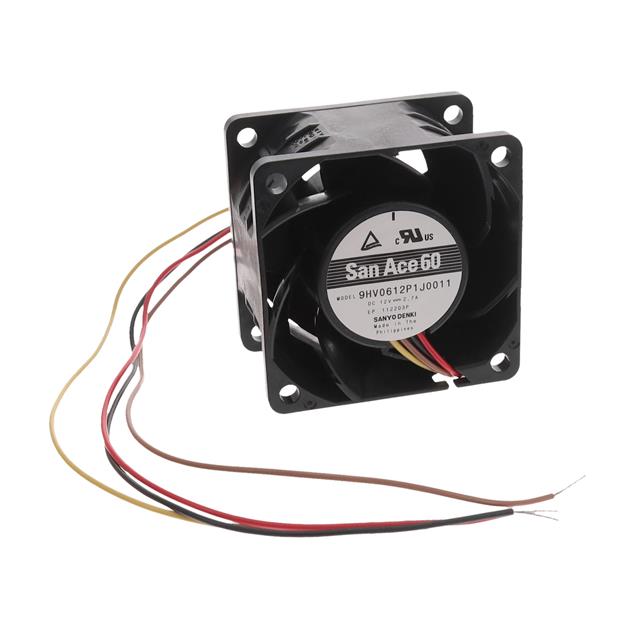

9HV0612P1J0011
ActiveSanyo Denki America Inc.
FAN AXIAL 60X38MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
9HV0612P1J0011
ActiveSanyo Denki America Inc.
FAN AXIAL 60X38MM 12VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9HV0612P1J0011 |
|---|---|
| Air Flow | 1.86 m³/min |
| Air Flow | 66.4 CFM |
| Approval Agency | CSA, TUV, UL |
| Bearing Type | Ball |
| Current Rating (Amps) | 2.7 A |
| Fan Type | Tubeaxial |
| Features | Speed Sensor (Tach), PWM Control |
| Lifetime @ Temp. | Varies Based on Temperature |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 68 dB |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 32.4 W |
| RPM | 21700 RPM |
| Size / Dimension [x] | 60 mm |
| Size / Dimension [y] | 60 mm |
| Static Pressure | 7 in H2O |
| Static Pressure | 1743.6 Pa |
| Termination | 4 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 12.6 VDC |
| Voltage Range [Min] | 10.8 VDC |
| Weight | 135.17 g |
| Weight | 0.298 lb |
| Width [y] | 38 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 26.18 | |
Description
General part information
9HV0612 Series
Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 66.4 CFM (1.86mł/min) 4 Wire Leads
