CXS3102A14S9P

Active

Conxall/Switchcraft

CONN RCPT MALE 2P SILV SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CXS3102A14S9P

Active

Conxall/Switchcraft

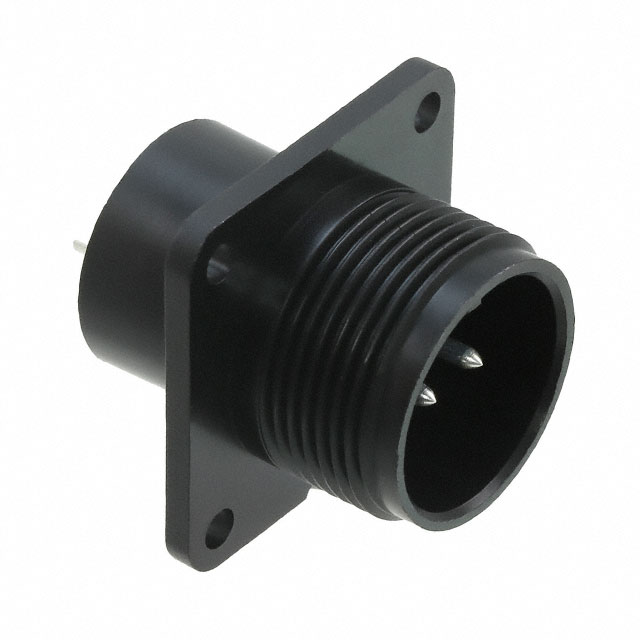

CONN RCPT MALE 2P SILV SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CXS3102A14S9P

Applications	Lighting
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Brass
Mounting Feature	Flange
Number of Positions	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Size - Insert	14S-9
Shielding	Unshielded
Voltage Rating	500 V

CXS3102A Series

Part	Applications	Connector Type	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Voltage Rating	Primary Material	Number of Positions	Contact Finish - Mating	Color	Shielding	Mounting Feature	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Shell Size - Insert
Conxall/Switchcraft CXS3102A2428P	Lighting	Male Pins Receptacle	28	24	500 V	Plastic	24	Silver	Black	Unshielded	Flange	Brass	125 °C	-40 °C	Keyed
Conxall/Switchcraft CXS3102A14S9P	Lighting	Male Pins Receptacle			500 V	Plastic	2	Silver	Black	Unshielded	Flange	Brass	125 °C	-40 °C	Keyed	14S-9
Conxall/Switchcraft CXS3102A1811P	Lighting	Male Pins Receptacle			500 V	Plastic		Silver	Black	Unshielded	Flange	Brass	125 °C	-40 °C	Keyed	18-11
Conxall/Switchcraft CXS3102A14S6P	Lighting	Male Pins Receptacle			500 V	Plastic	6	Silver	Black	Unshielded	Flange	Brass	125 °C	-40 °C	Keyed	14S-6
Conxall/Switchcraft CXS3102A2214P	Lighting	Male Pins Receptacle			500 V	Plastic	19	Silver	Black	Unshielded	Flange	Brass	125 °C	-40 °C	Keyed	22-14
Conxall/Switchcraft CXS3102A14S7P	Lighting	Male Pins Receptacle			500 V	Plastic		Silver	Black	Unshielded	Flange	Brass	125 °C	-40 °C	Keyed	14S-7
Conxall/Switchcraft CXS3102A14S7S	Lighting	Receptacle Female Sockets			500 V	Plastic		Silver	Black	Unshielded	Flange	Brass	125 °C	-40 °C	Keyed	14S-7
Conxall/Switchcraft CXS3102A207S	Lighting	Receptacle Female Sockets			500 V	Plastic	8	Silver	Black	Unshielded	Flange	Brass	125 °C	-40 °C	Keyed	20-7
Conxall/Switchcraft CXS3102A242S	Lighting	Receptacle Female Sockets			500 V	Plastic	7	Silver	Black	Unshielded	Flange	Brass	125 °C	-40 °C	Keyed	24-2
Conxall/Switchcraft CXS3102A2027S	Lighting	Receptacle Female Sockets	27	20	500 V	Plastic	14	Silver	Black	Unshielded	Flange	Brass	125 °C	-40 °C	Keyed

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.40
		10	$ 6.66
		25	$ 6.27
		50	$ 6.11
		100	$ 5.95
		300	$ 5.66

Description

General part information

CXS3102A Series

2 Position Circular Connector Receptacle, Male Pins Solder Cup
